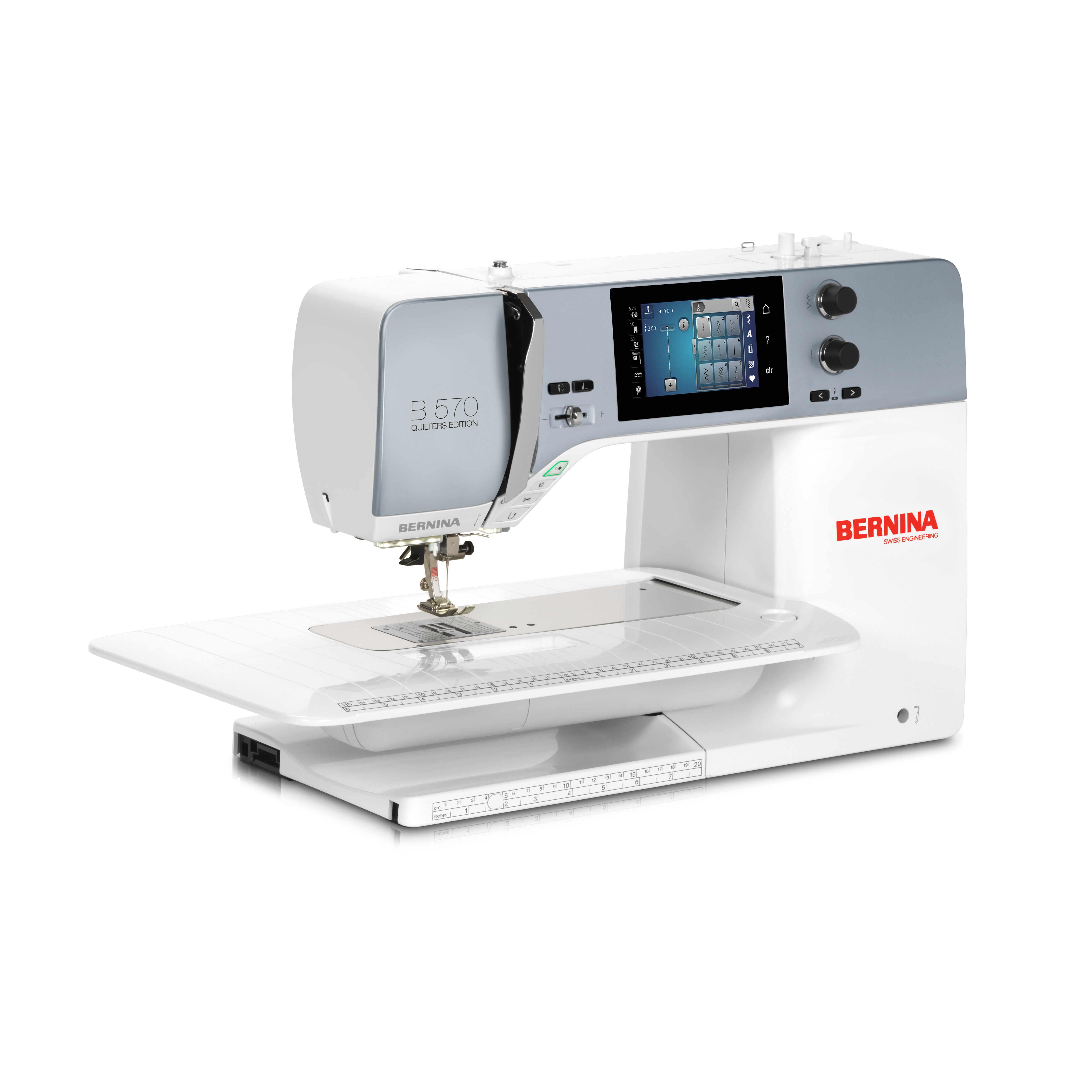

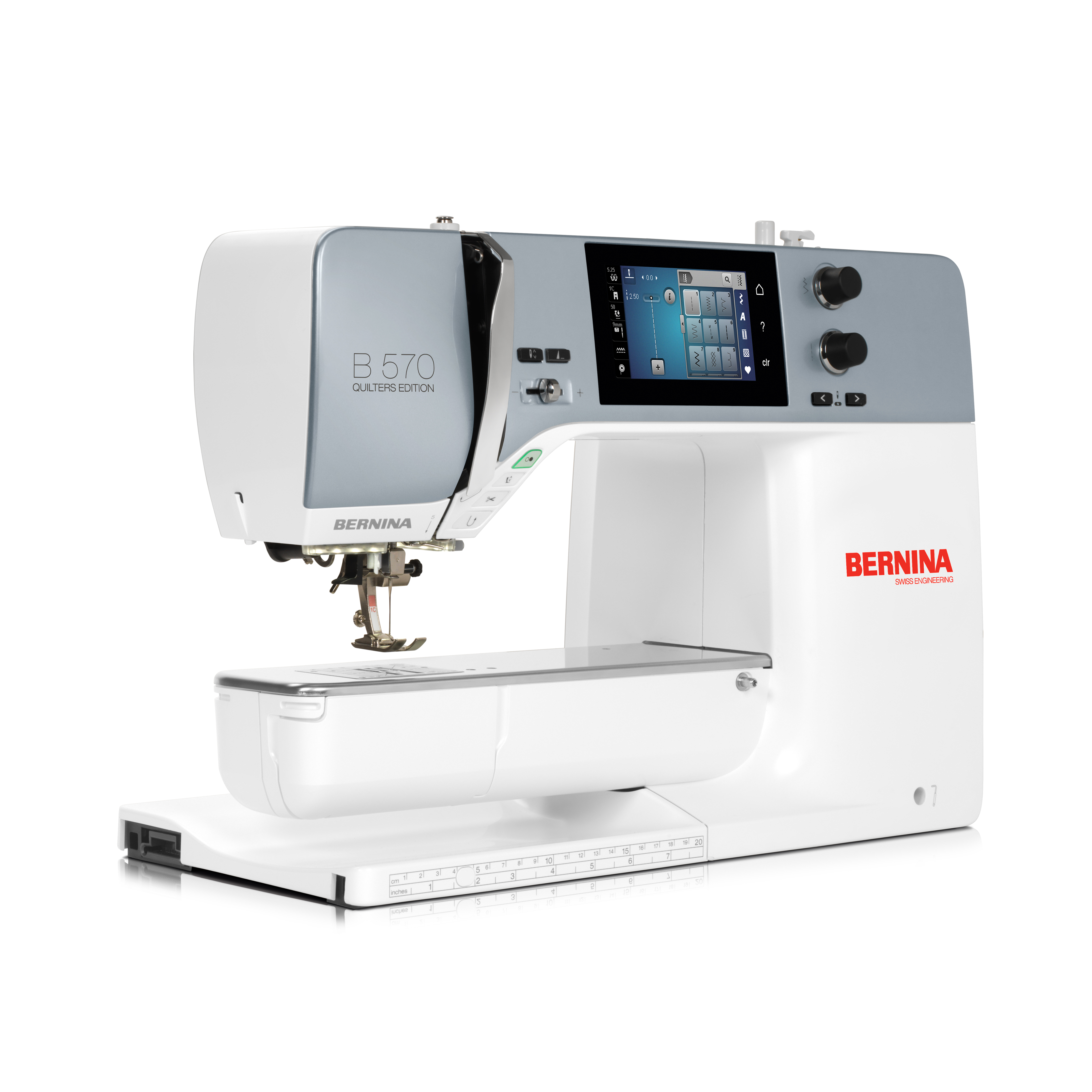

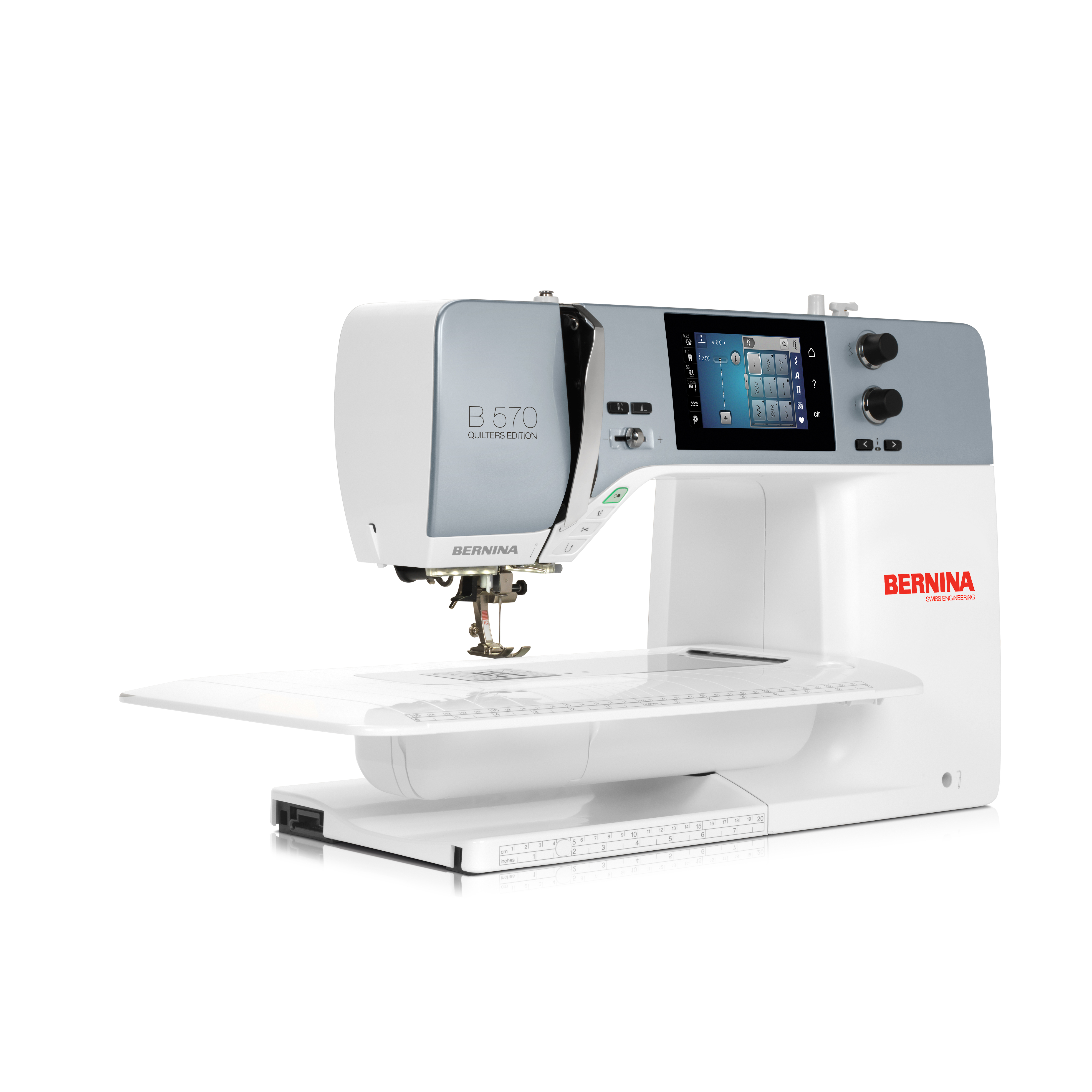

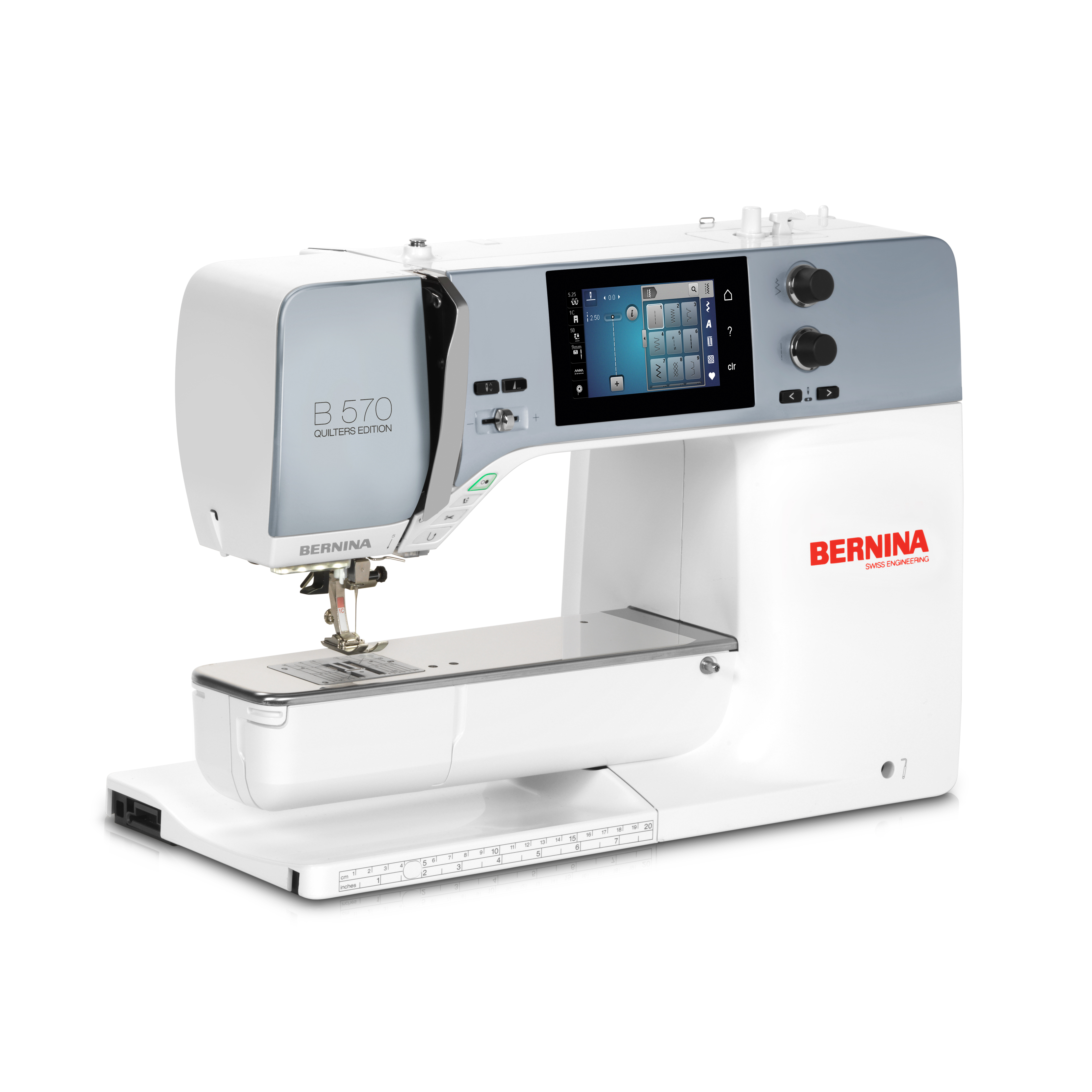

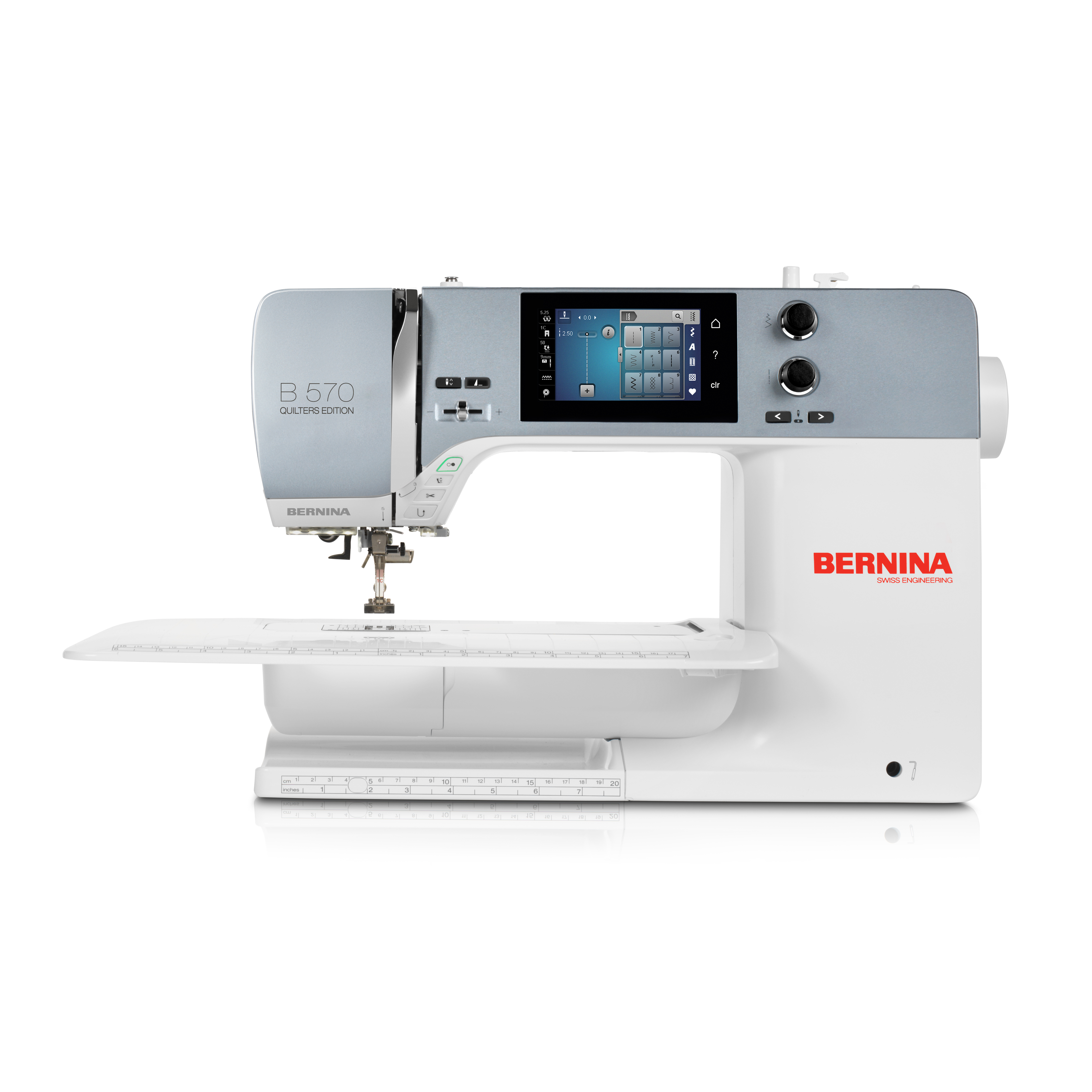

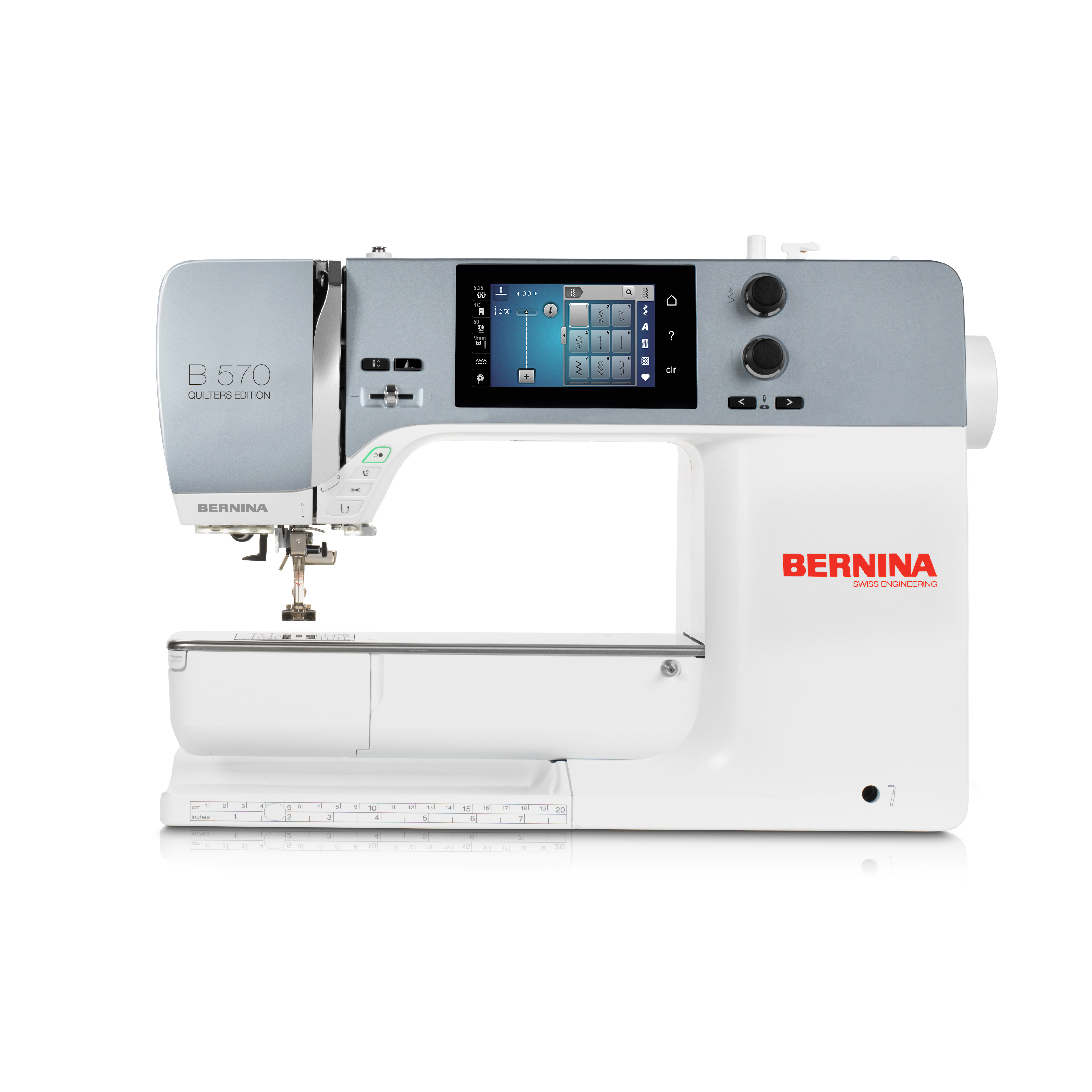

BERNINA 570 QE
- BERNINA dealer since 1997
- Personal advice
- Fast shipping from Swiss warehouse
CHF 3,095.00
Free shipping
Available, delivery time: 1-3 days
Do you love quilting? So does the B 570 Quilters Edition!
Plenty of space for large projects
- Sew even large quilts with ease
- Give free rein to your creativity
- Clearly organised work area

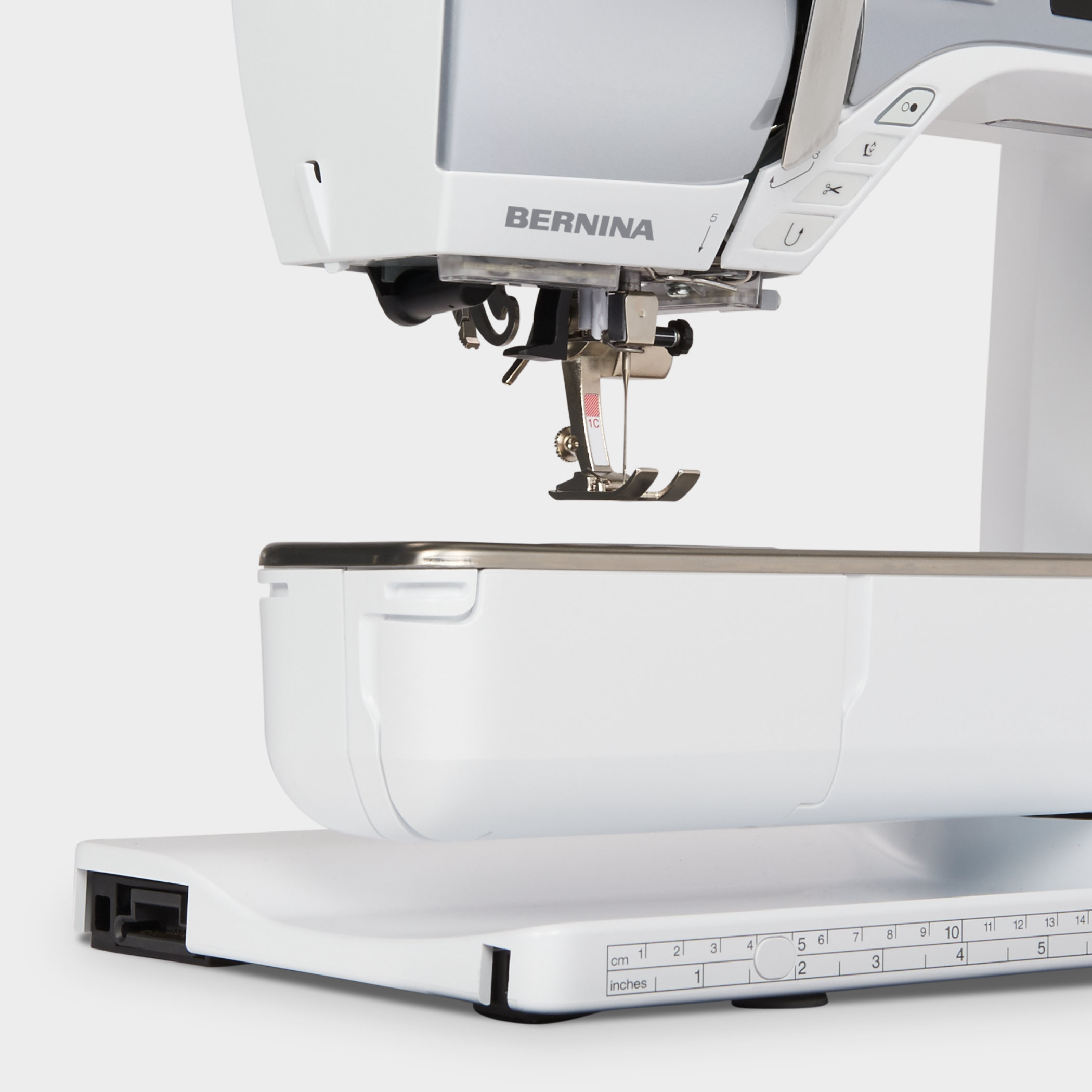

The extended free arm of the B 570 QE offers 215 mm to the right of the needle. Ideal for creating large quilt projects.

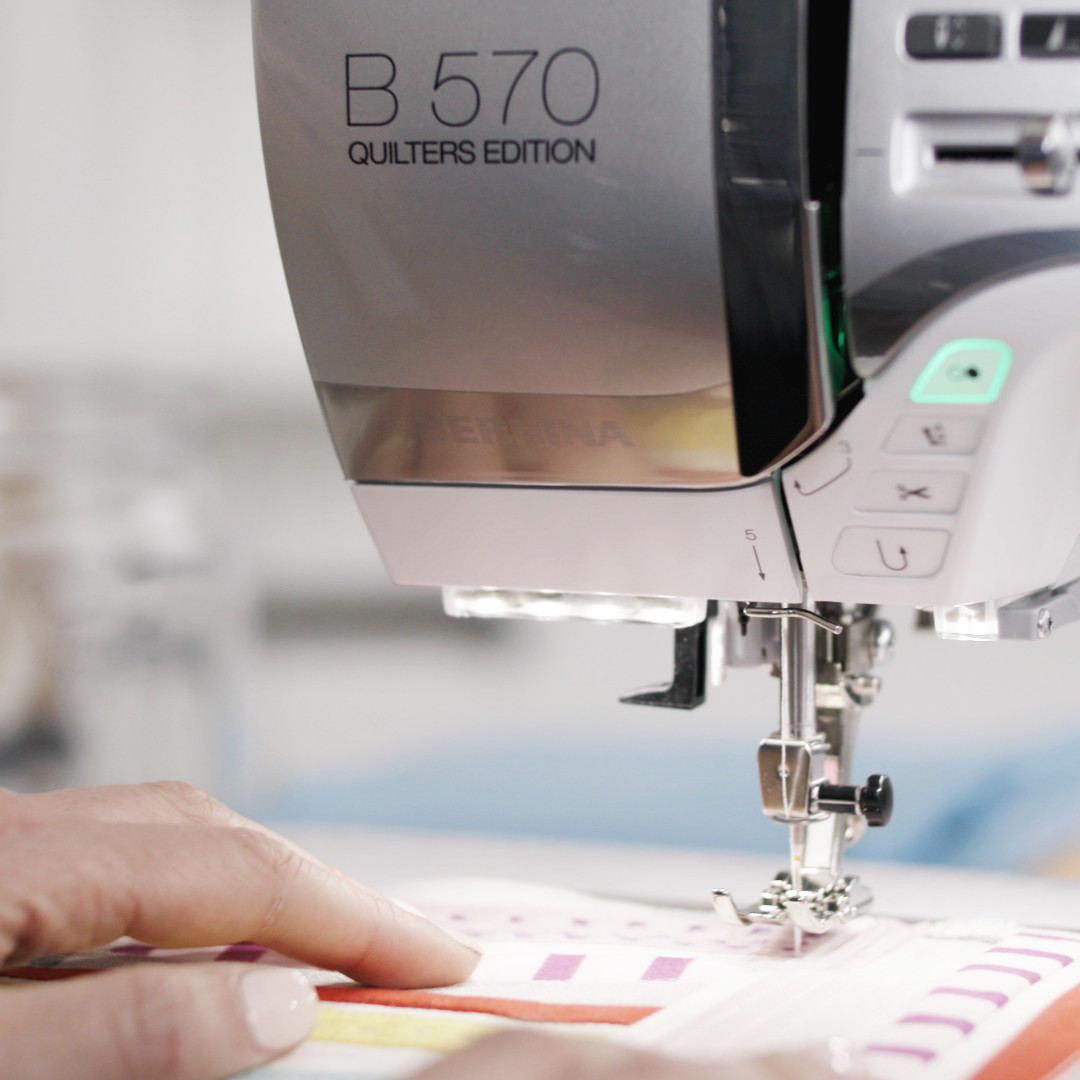

Your hands remain free
- Guide the quilt securely
- Make small adjustments easily
- Turn, turn and appliqué
The presser foot lifts, the needle remains in the fabric, so you can turn, flip or appliqué the quilt as you wish.
Achieve a precise stitch pattern
- Perfect stitches of the same length
- Beautiful results at any speed
- Perfection is the new standard
The BERNINA stitch regulator always ensures stitches of exactly the same length at variable sewing speeds.

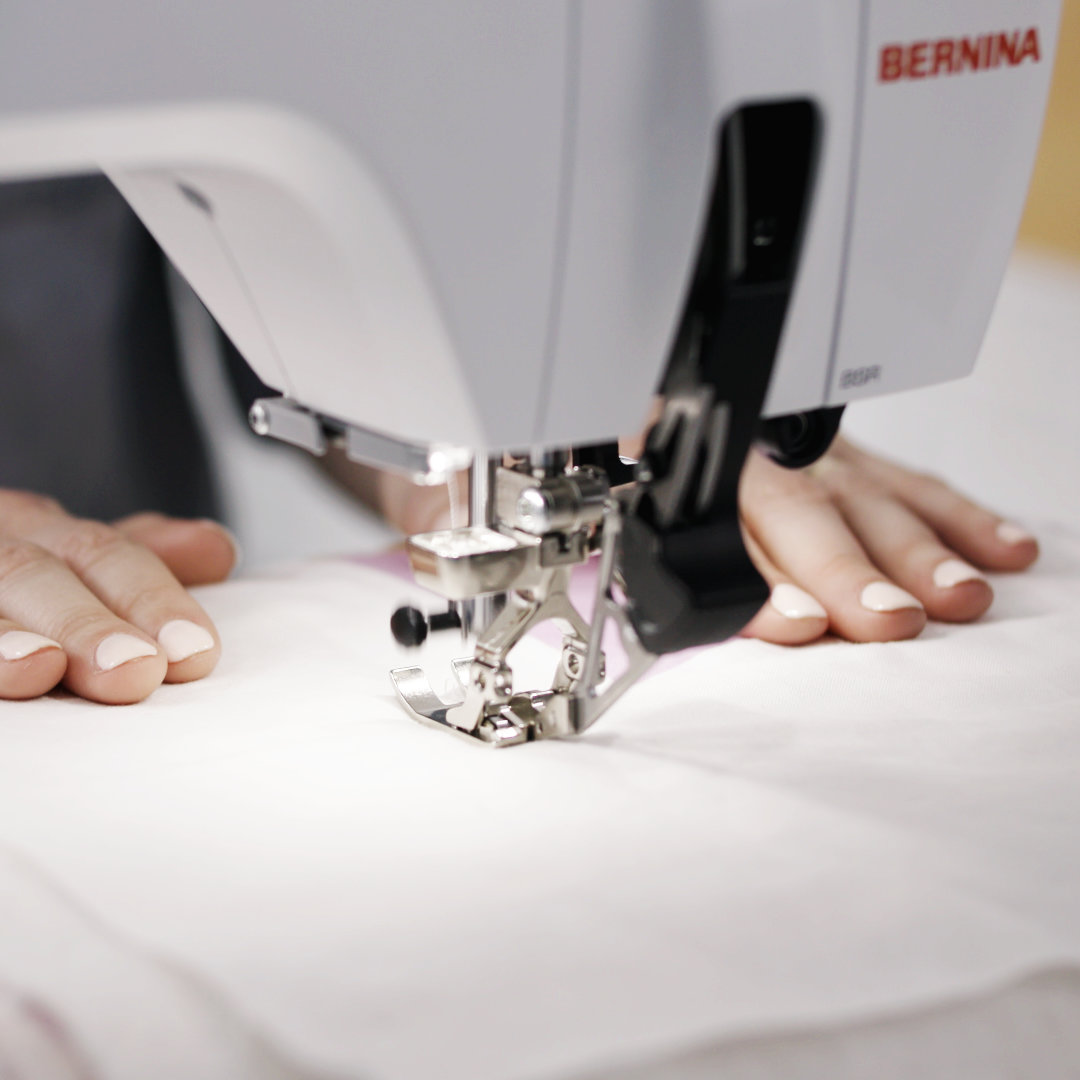

Quilting with any material
- Optimum fabric guidance
- Quilt multiple layers without ripples
- Fine materials do not slip

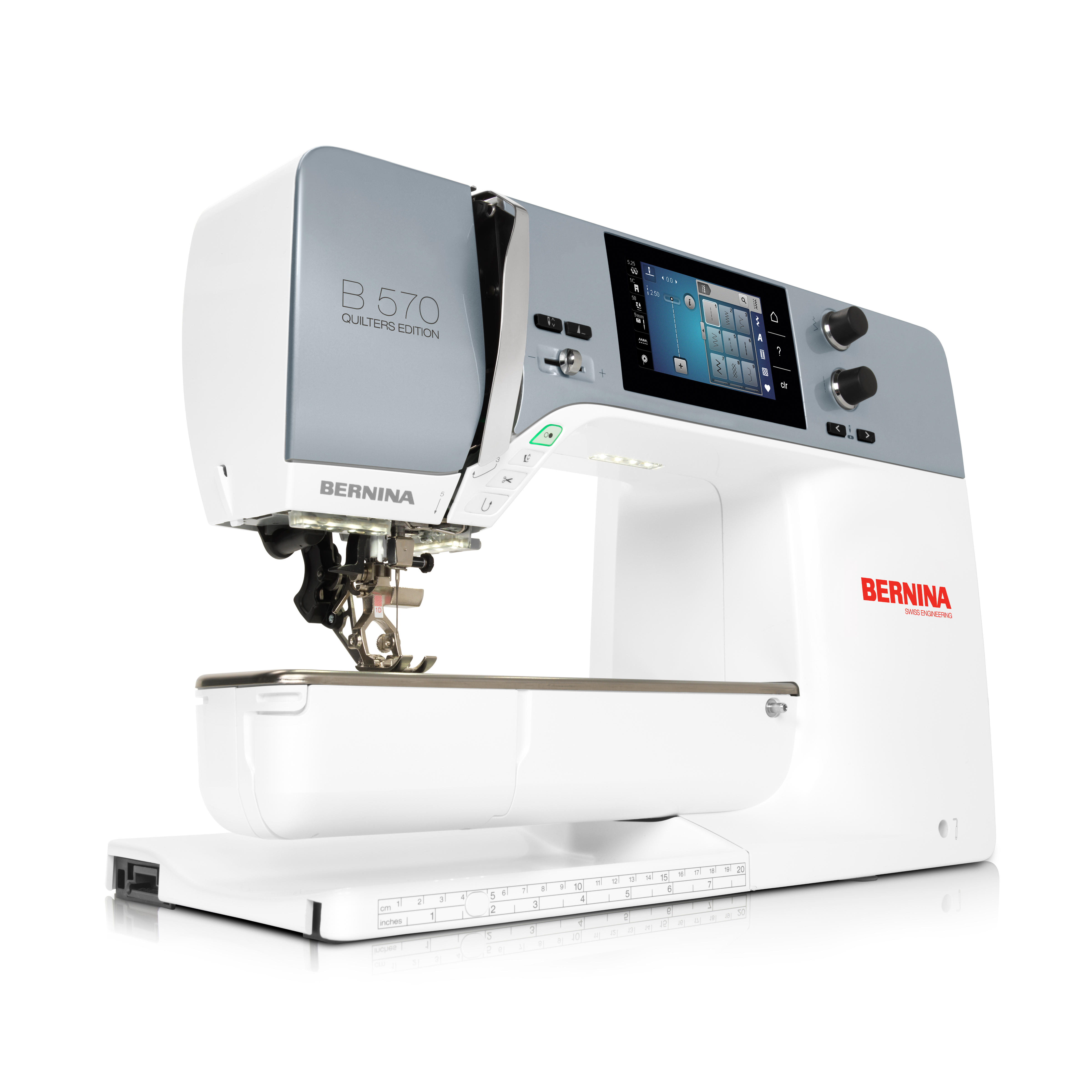

The innovative BERNINA Dual Feed feeds smooth and fine materials evenly and carefully. Easy to activate when needed.
These functions save time
- No manual thread cutting
- The foot lifts at the touch of a button
- Thread ends are cut at the touch of a button
The automatic thread cutter performs three steps at once: it cuts the thread, lifts the needle and raises the presser foot.

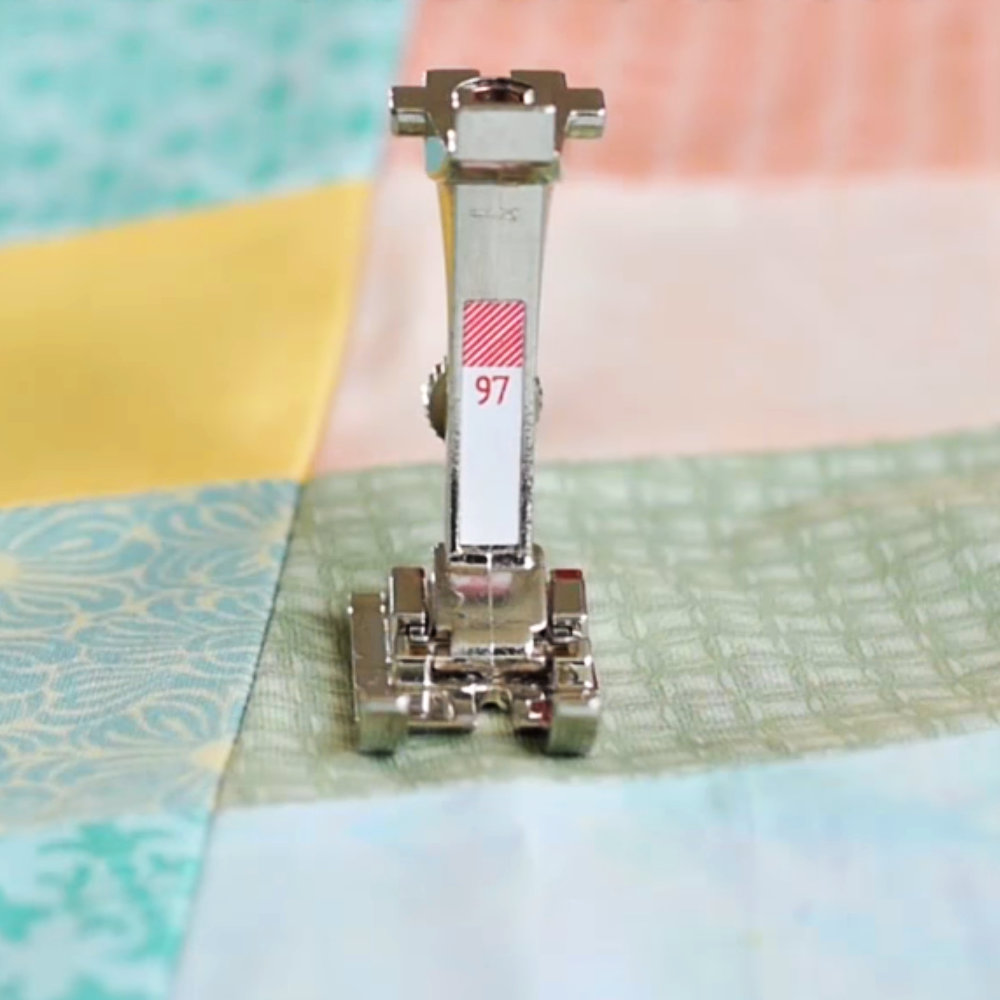

Your new favourite foot
- Perfect for straight stitches
- Ideal for work with ¼" seam allowance
- Safety even for experienced sewers
The patchwork foot #97 is a wonderful tool for precise seams when making patchwork blocks.
Features & Properties "BERNINA 570 QE"
General functions
| Adaptive BERNINA thread tension: | Yes |
|---|---|
| Automatic needle stop (top & bottom): | Yes |
| Automatic presser foot lifter: | Yes |
| Automatic presser foot pressure: | Yes |
| Automatic thread cutter: | Yes |
| BERNINA free-motion system (FHS): | Yes |
| BSR Functionality: | Yes |
| Bobbin thread monitoring: | Yes |
| Cruise control: | Yes |
| Drag & Drop: | Yes |
| Dual transport: | Yes |
| Manual thread cutter: | 3 |
| Max. Stitch length: | 6 mm |
| Max. Stitch width: | 9 mm |
| Memory (long-term memory): | Yes |
| Memory (short-term memory): | Yes |
| Multifunctional rotary knobs: | Yes |
| Needle positions: | 11 |
| Number of spool holders: | 2 |
| Number of stitches: | 1450 |
| Onscreen Help: | Yes |
| Presser foot floating function: | Yes |
| Push-on table: | Yes |
| Reverse sewing: | Yes |
| Semi-automatic needle threader: | Yes |
| Setup programme: | Yes |
| Sewing in any needle position: | Yes |
| Sewing light: | 12 LED |
| Sewing speed: | 1000 stitches/min |
| Space to the right of the needle: | 215 mm |
| Start & stop button (sewing without foot control): | Yes |
| Toggle lever for freehand system (FHS): | Yes |
| USB port for PC connection: | Yes |
| Upper thread monitoring: | Yes |
| Winding during sewing / embroidery: | Yes |
Sewing and quilting
| Automatic buttonhole: | Yes |
|---|---|
| Automatic length measuring buttonhole: | Yes |
| Button sewing programme: | Yes |
| Change pattern length: | Yes |
| Creating and saving sewing stitch combinations: | Yes |
| Manual multi-stage buttonhole: | Yes |
| Mirror function: | left/right, top/bottom |
| Number of buttonholes (incl. eyelets): | 16 |
| Number of cross stitches: | 34 |
| Number of decorative stitches: | 450 |
| Number of quilting stitches: | 73 |
| Number of sewing alphabets: | 8 |
| Number of sewing stitches (incl. alphabets): | 1450 |
| Number of utility stitches: | 34 |
| Pattern repetition (1-9 times): | Yes |
| Pattern start function: | Yes |
| Programmable pattern end: | No |
| Safety function: | Sewing needle, Stitch plate |
| Sample end function: | Yes |
| Tamping programme(s): | Yes |
| Triple stitch: | Yes |
| Tutorial (Sewing): | Yes |
Embroider
| Automatic embroidery hoop recognition: | Yes |
|---|---|
| BERNINA PunchWork-Tool compatible: | Yes |
| BERNINA embroidery software compatible: | Yes |
| Border embroidery: | No |
| Clever sewing stitch recognition: | Yes |
| Colour wheel: | No |
| Embroidery design formats: | DST, EXP, JEF, PCS, PEC, PES, SEW, XXX |
| Embroidery functionality: | Yes |
| Embroidery module (size M): | optional |
| Embroidery process control: | Yes |
| Free arm embroidery: | Yes |
| Grouping / Ungrouping: | No |
| Import / export of samples via USB: | Yes |
| Invisible sewing: | Yes |
| Lower thread up function: | Yes |
| Maximum embroidery area: | 400 x 150 mm |
| Maximum embroidery speed: | 1000 stitches/min |
| Mega-Hoop functionality (embroidery area: 400 × 150 mm) Embroidery hoop optional: | Yes |
| Memory for your own embroidery designs: | Yes |
| Midi-hoop functionality (embroidery area: 265 × 165 mm) Optional embroidery hoop: | Yes |
| Number of embroidery designs: | 250 |
| Number of stick alphabets: | 7 |
| Precise placement: | No |
| Programmable cutting of connecting stitches: | Yes |
| Reduce the number of colour changes: | Yes |
| Sample processing via touchscreen: | Combine, Mirror, Positioning, Scaling, Turning |
| Save last embroidery position: | Yes |
| Sewing stitches in embroidery mode: | No |
| Stapling in the frame: | Yes |
| Thread removal function: | Yes |
| Tutorial (Embroidery): | Yes |
| Undo / Redo: | No |
| Word ART: | Yes |
Comfort features
| Adjustable presser foot pressure: | Yes |
|---|---|
| BSR foot #42 (BERNINA stitch regulator): | Yes |
| Dust cover: | Yes |
| Embroidery consultant: | No |
| Foot control: | Back-Kick |
| Sewing consultant: | Yes |
| Stitch alteration during sewing: | Yes |
| Thread tension adjustable during sewing: | Yes |
Technical features
| Article type: | Sewing and embroidery machine, Sewing machine |
|---|---|
| Colour: | White / Silver |
| Dimensions L / W / H: | 461 / 200 / 328 mm |
| Display: | Colour touchscreen (4.3" / 10 cm) |
| Functions: | Embroidery, Quilting, Sewing |
| Gripper system: | BG BERNINA Hook |
| Guarantee: | 2 years |
| Series: | BERNINA 5 Series |
| Weight: | 11 kg |
Scope of delivery
| #1C Reverse feed foot |
|---|
| #1D Reverse feed foot |
| #2A Overlock foot |
| #3A Automatic buttonhole foot |
| #4D Zipper foot |
| #20C Open embroidery foot |
| #97D Patchwork foot |
| Knee lever for free-motion system FHS |
| Push-on table |
| Edge stop for push-on table |
| Power cord |
| Accessory box |
| Dust cover |
| 5 bobbin thread spools |
| Touch screen |
| Cleaning brush |
| Arrow separator / buttonhole opener |
| Power cord |
| Accessory box |
| Dust cover |
| 5 bobbin thread spools |
| Touch screen |
| Cleaning brush |
| Edge stop for push-on table |
| BERNINA foot control with back-kick function |
| Power cord |
| Accessory box |
| Dust cover |
| 5 bobbin thread spools |
| Touch pen |
| Cleaning brush |
| Arrow separator / buttonhole opener |
| Screwdriver |
| Needle assortment |
| Height adjustment |
| Sewing machine oil |
| 2 foam discs |
| 3 drain discs (small, medium, large) |
| Operating instructions |
