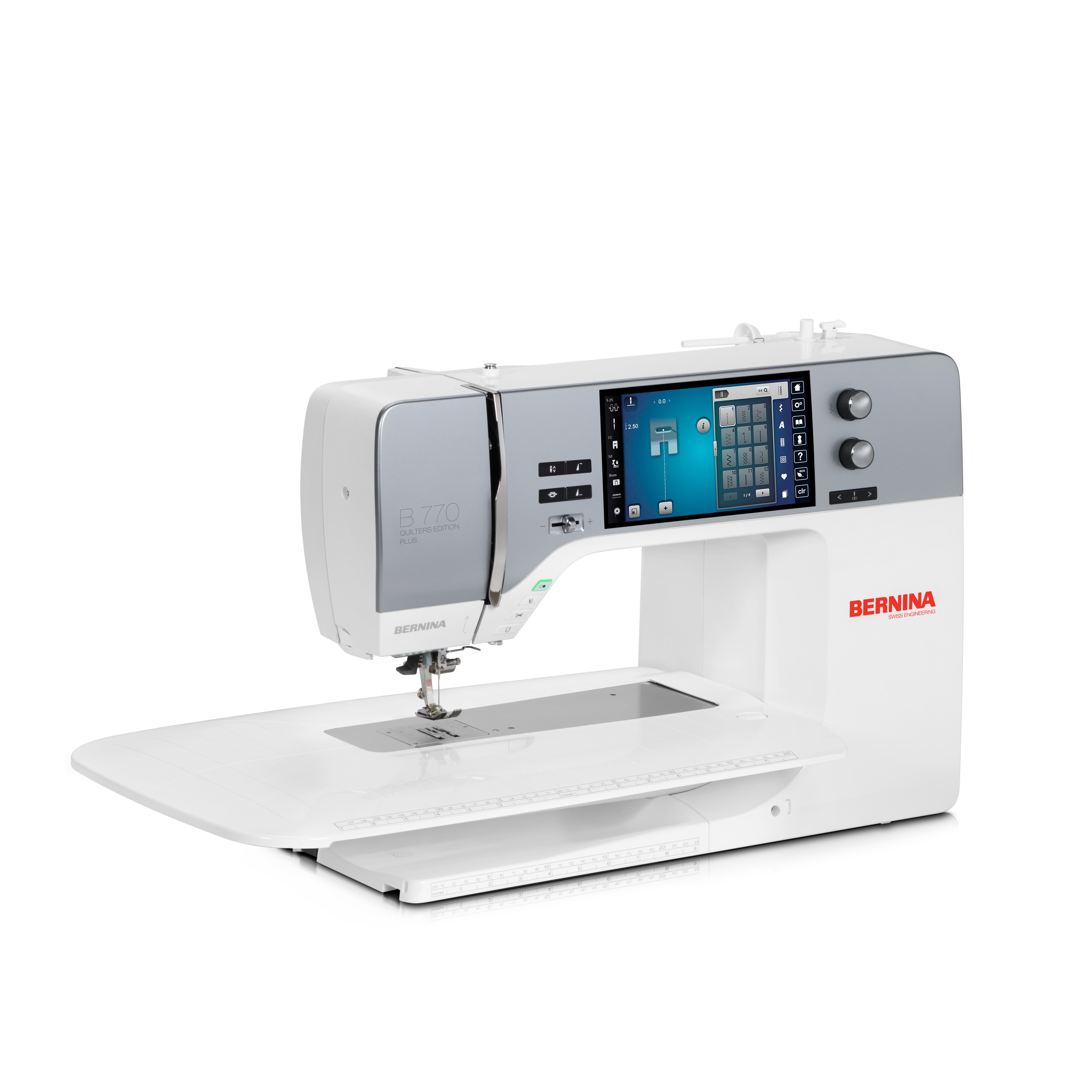

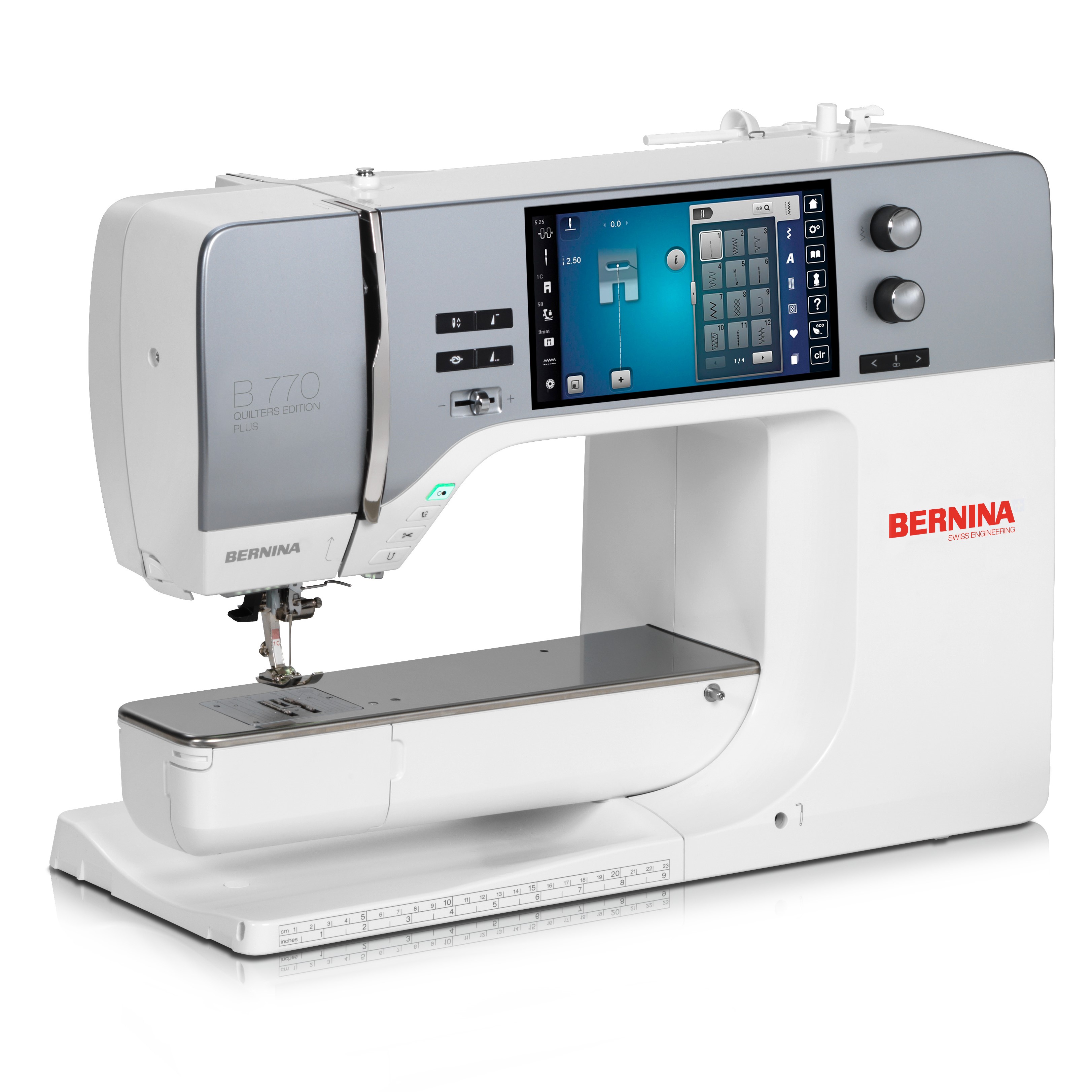

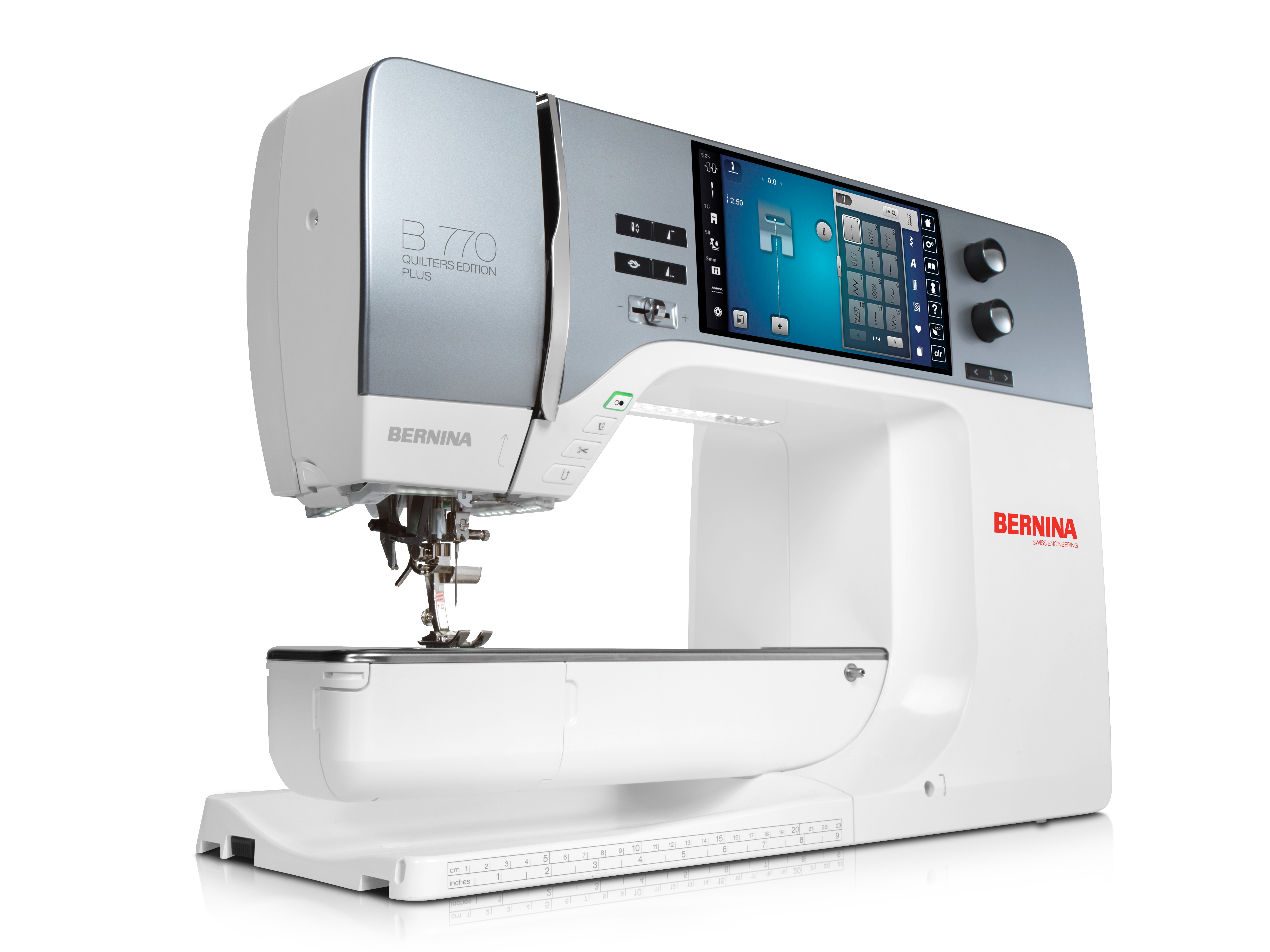

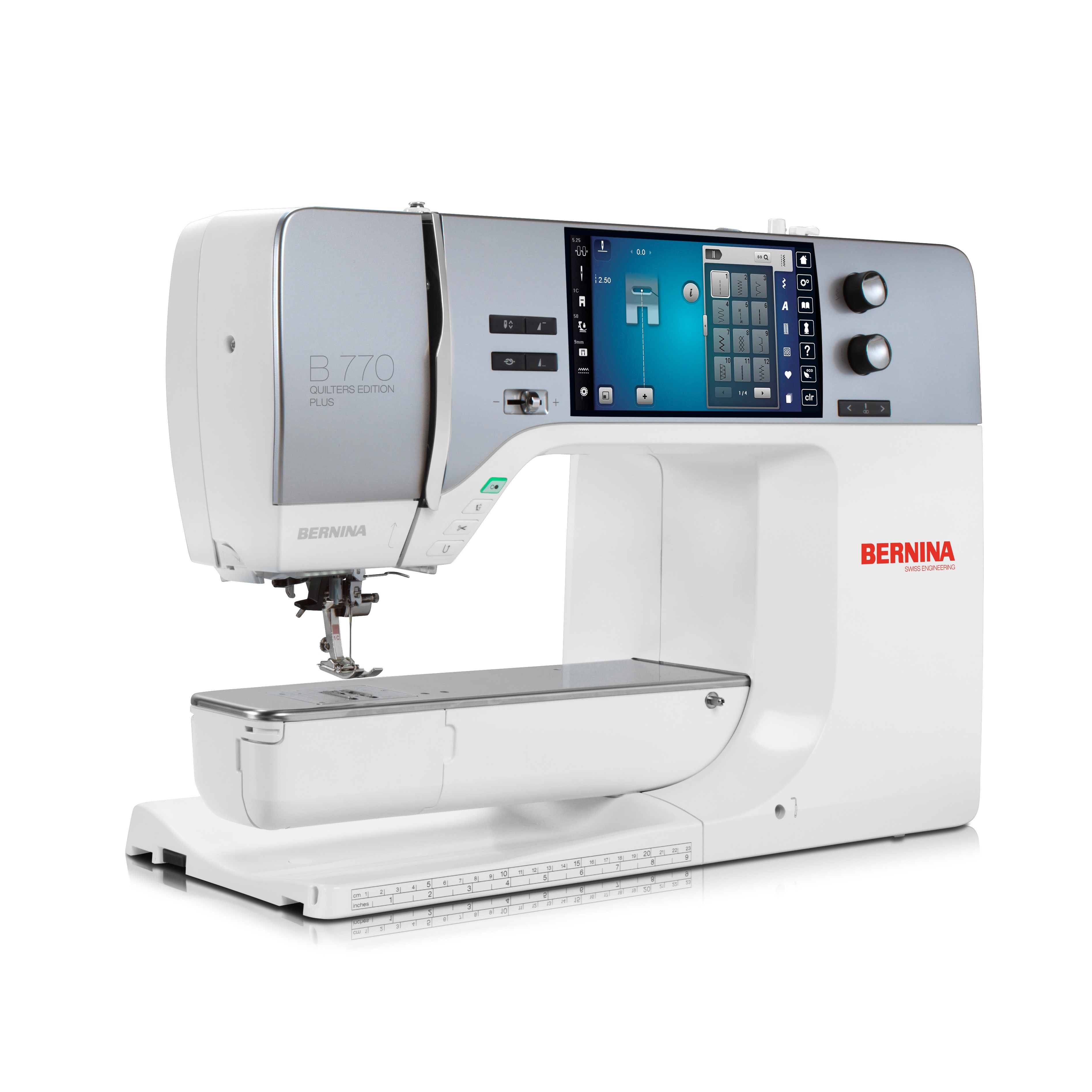

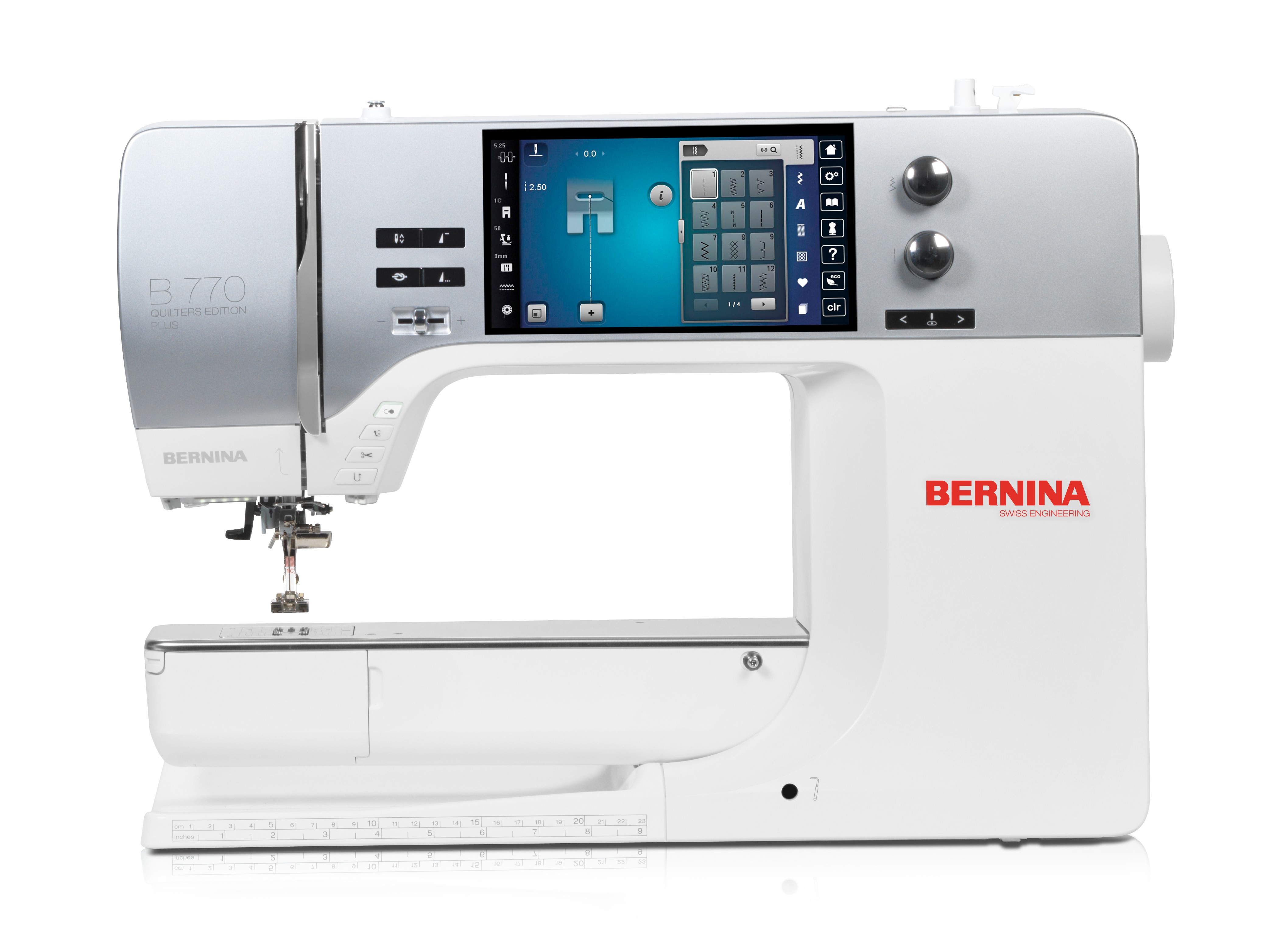

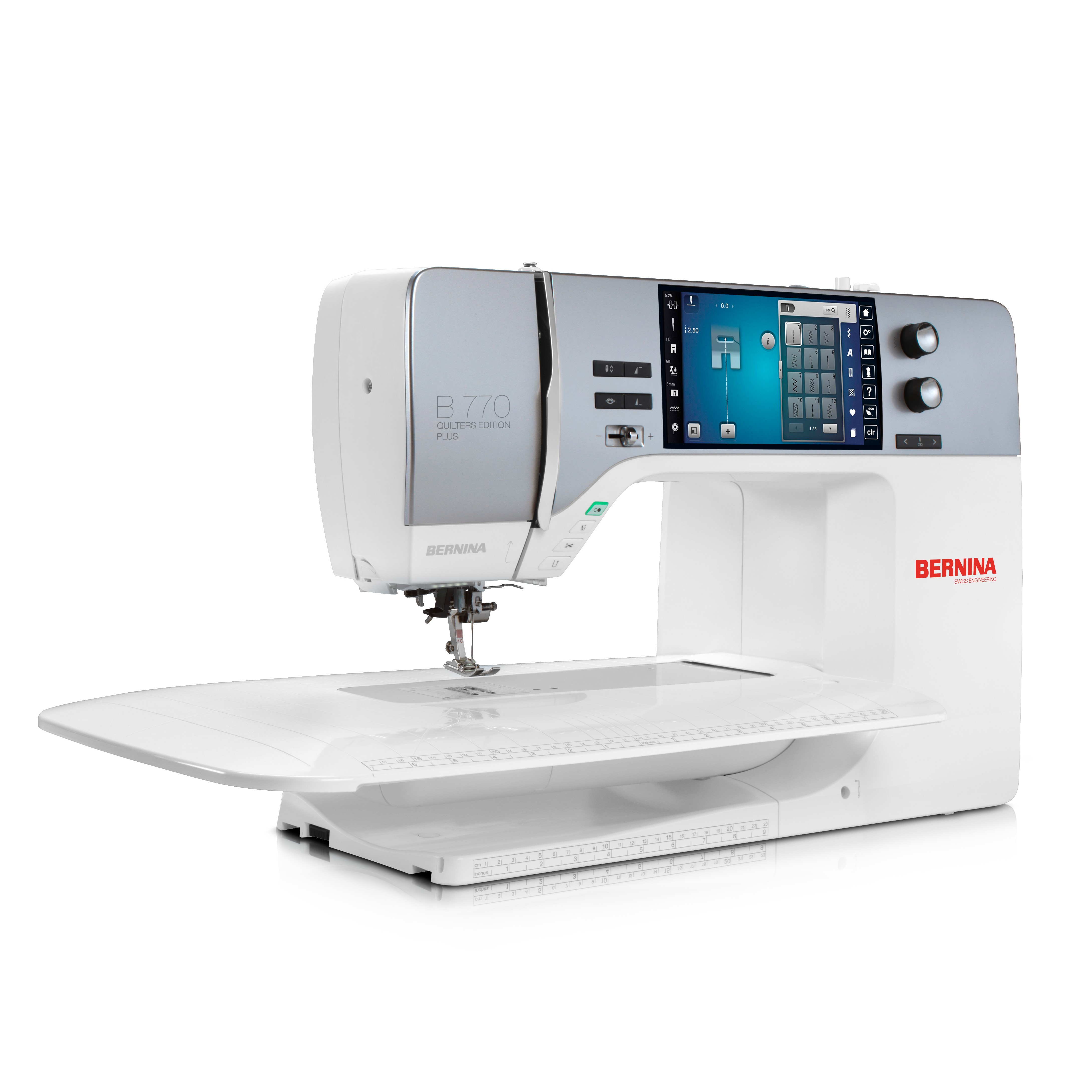

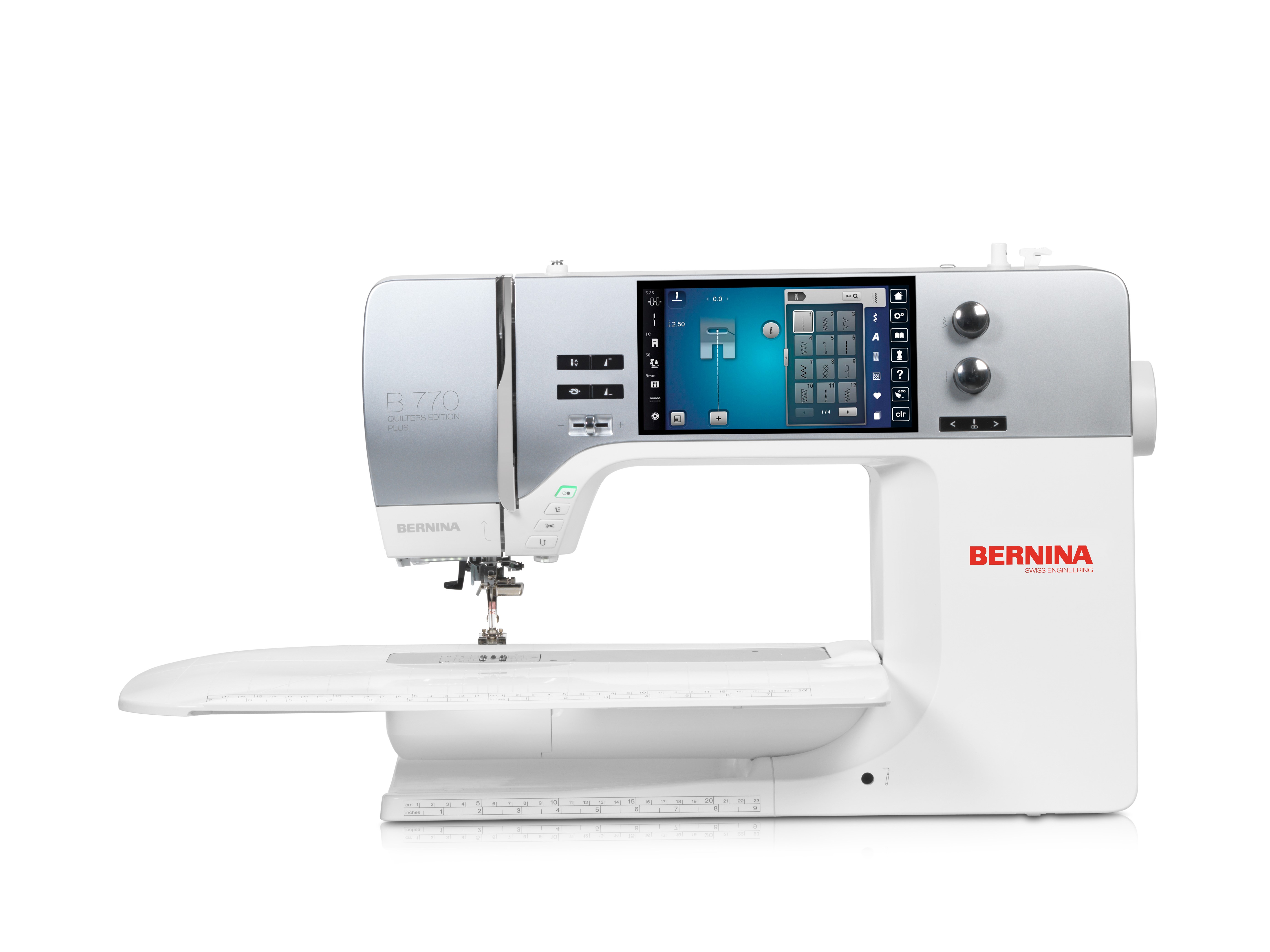

BERNINA 770 QE PLUS
CHF 5,195.00*
Available in 3 days, delivery time 1-3 days
Legendary stitch quality and great new functions

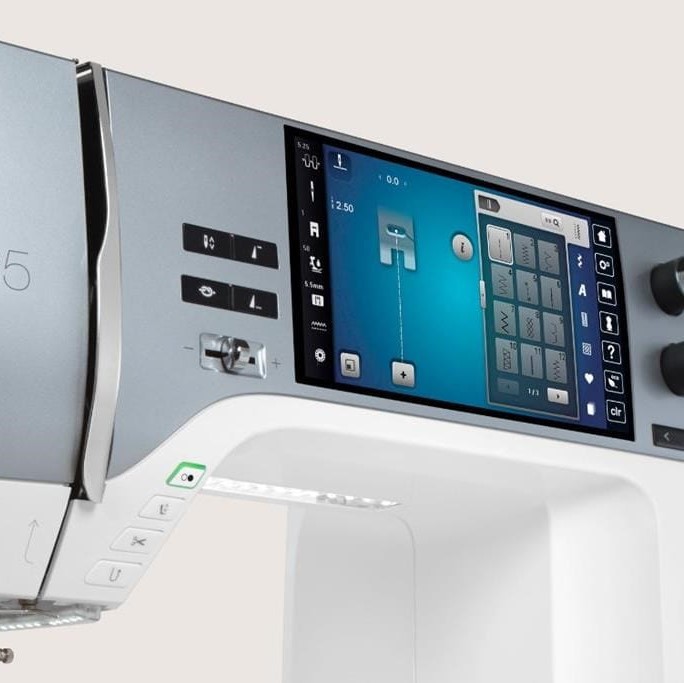

Extra large touch screen
- Precise & beautiful stitch pattern
- Embroider & sew longer without interruptions
- More time for creative brainstorming
The extra-large touchscreen allows you to operate the machine with ease. Get direct tips and tricks or have important work steps shown to you in short instructional animations.

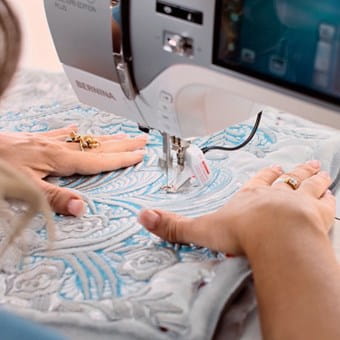

Achieve a precise stitch pattern
- Perfect stitches of the same length
- Beautiful results at any speed
- Perfection is the new standard
The BERNINA Stitch Regulator (BSR) always ensures stitches of exactly the same length at variable sewing speeds.

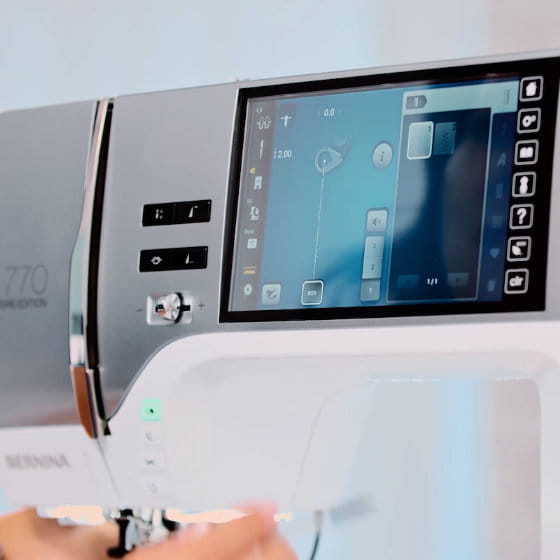

What quilters need
- Large selection of quilting stitches
- Easy-to-use BSR 3 mode
- select 2 or 4 stitches per inch
Thanks to the new BSR-3 mode, you can set your stitch length to 2 or 4 stitches per inch, which makes basting much easier. The B 770 QE PLUS also has a total of 74 quilting stitches.

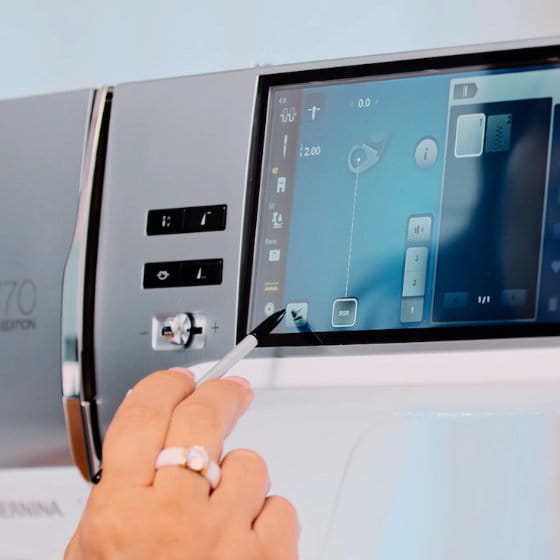

Comfortable quilting thanks to KickStart
- Relax your foot
- Easily control the start/stop function
- Perfect for hours of quilting
The KickStart function enables quilting in a continuous sewing mode without having to keep the foot control pressed. The KickStart function can be easily activated and deactivated on the touchscreen.
Quilting in the embroidery hoop
- Realise quilt designs in embroidery mode
- 275 embroidery designs
- 8 embroidery alphabets
Browse through the unique design collection for beautiful quilt blocks and continuous quilt designs that you can realise in embroidery mode. The B 770 QE PLUS also contains over 270 embroidery designs and eight embroidery alphabets.

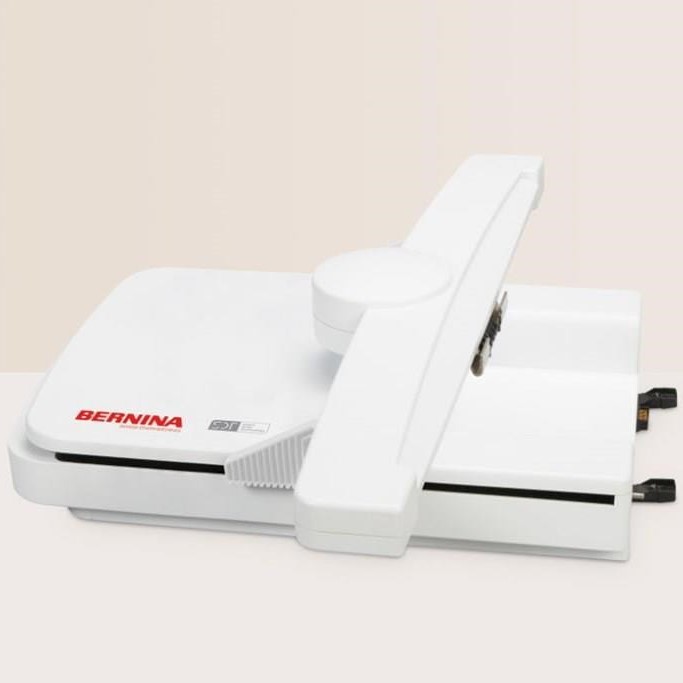

Embroidery module with new technology
- Smoother movement, less vibration
- Embroider even faster and more efficiently
- Improved stitch quality
The embroidery module with new BERNINA Smart Drive Technology (SDT) enhances your embroidery experience with improved stitch quality, smoother and quieter movement and up to 55% faster embroidery speed.

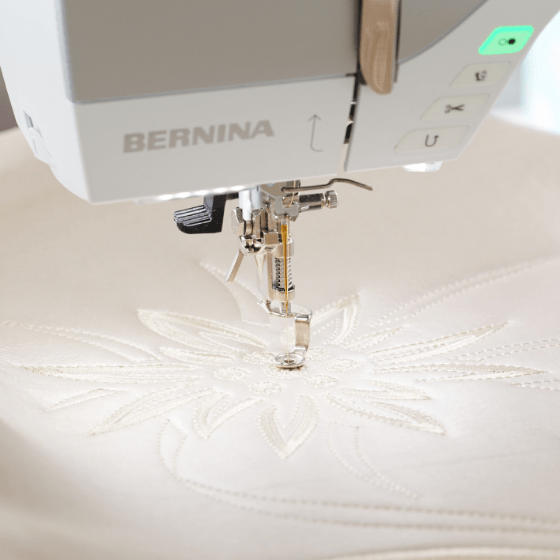

Precise placement and lock function
- Position your embroidery motif precisely
- Embroidery design size can be fixed during positioning
- For professionally placed designs
With the "precise placement" function, you can place the embroidery design exactly where you want it on the fabric - quickly and precisely. In addition, the size of your design is retained during positioning thanks to the new lock function.

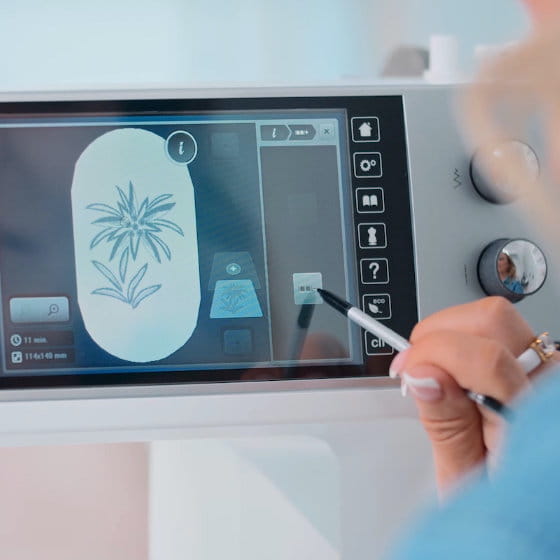

Customise grouping and embroidery order
- Grouping & ungrouping
- Change embroidery sequence
- Both functions can be combined
Group objects to edit them all at the same time or ungroup them to edit objects individually. Customise the embroidery sequence levels individually. In combination with the grouping function, this opens up further creative editing options.
Finest materials in perfection
- Optimum fabric guidance
- Quilt several layers without waves
- Fine materials do not slip
The innovative BERNINA Dual Transport feeds smooth and fine materials evenly and carefully. Easy to activate when you need it.
Features & Properties "BERNINA 770 QE PLUS"
General functions
| Adaptive BERNINA thread tension: | Yes |
|---|---|
| Automatic needle stop (top & bottom): | Yes |
| Automatic presser foot lifter: | Yes |
| Automatic presser foot pressure: | Yes |
| Automatic thread cutter: | Yes |
| BERNINA free-motion system (FHS): | Yes |
| BSR Functionality: | Yes |
| Bobbin thread monitoring: | Yes |
| Cruise control: | Yes |
| Drag & Drop: | Yes |
| Dual transport: | Yes |
| Eco mode: | Yes |
| History (saving the last stitches): | Yes |
| Manual thread cutter: | 3 |
| Max. Stitch length: | 6 mm |
| Max. Stitch width: | 9 mm |
| Memory (long-term memory): | Yes |
| Memory (short-term memory): | Yes |
| Multifunctional rotary knobs: | Yes |
| Needle positions: | 11 |
| Number of spool holders: | 2 |
| Number of stitches: | 1809 |
| Onscreen Help: | Yes |
| Personal programme: | Yes |
| Push-on table: | Yes |
| Reverse sewing: | Yes |
| Semi-automatic needle threader: | Yes |
| Setup programme: | Yes |
| Sewing in any needle position: | Yes |
| Sewing light: | 30 LED |
| Sewing speed: | 1000 stitches/min |
| Space to the right of the needle: | 254 mm |
| Start & stop button (sewing without foot control): | Yes |
| Toggle lever for freehand system (FHS): | Yes |
| USB port for PC connection: | Yes |
| Upper thread monitoring: | Yes |
| Winding during sewing / embroidery: | Yes |
Sewing and quilting
| 360° sewing: | No |
|---|---|
| Automatic buttonhole: | Yes |
| Automatic length measuring buttonhole: | Yes |
| Button sewing programme: | Yes |
| Change pattern length: | Yes |
| Creating and saving sewing stitch combinations: | Yes |
| Cross transport: | No |
| Manual multi-stage buttonhole: | Yes |
| Mirror function: | left/right, top/bottom |
| Number of buttonholes (incl. eyelets): | 18 |
| Number of cross stitches: | 20 |
| Number of decorative stitches: | 500 |
| Number of quilting stitches: | 74 |
| Number of sewing alphabets: | 9 |
| Number of sewing stitches (incl. alphabets): | 1809 |
| Number of utility stitches: | 38 |
| Pattern start function: | Yes |
| Programmable pattern end: | Yes |
| Safety function: | Sewing needle, Stitch plate |
| Sample end function: | Yes |
| Tamping programme(s): | Yes |
| Triple stitch: | Yes |
| Tutorial (Sewing): | Yes |
Embroider
| Automatic embroidery hoop recognition: | Yes |
|---|---|
| BERNINA PunchWork-Tool compatible: | Yes |
| BERNINA embroidery software compatible: | Yes |
| Border embroidery: | No |
| Changing the order of the embroidery designs: | Yes |
| Clever sewing stitch recognition: | Yes |
| Colour wheel: | No |
| Embroidery design formats: | DST, EXP, JEF, PCS, PEC, PES, SEW, XXX |
| Embroidery functionality: | Yes |
| Embroidery module (size L): | optional (SDT) |
| Embroidery process control: | Yes |
| Free arm embroidery: | Yes |
| Grouping / Ungrouping: | Yes |
| Import / export of samples via USB: | Yes |
| Invisible sewing: | Yes |
| Jumbo hoop functionality (limited embroidery area: 400 × 210 mm) Optional embroidery hoop: | Yes |
| Lower thread up function: | Yes |
| Maxi-hoop functionality (embroidery area: 400 × 210 mm) Optional embroidery hoop: | Yes |
| Maximum embroidery area: | 400 x 210 mm |
| Maximum embroidery speed: | 1000 stitches/min |
| Mega-Hoop functionality (embroidery area: 400 × 150 mm) Embroidery hoop optional: | Yes |
| Memory for your own embroidery designs: | Yes |
| Midi-hoop functionality (embroidery area: 265 × 165 mm) Optional embroidery hoop: | Yes |
| Number of embroidery designs: | 275 |
| Number of stick alphabets: | 8 |
| Precise placement: | Yes, with lock function |
| Programmable cutting of connecting stitches: | Yes |
| Reduce the number of colour changes: | Yes |
| Sample processing via touchscreen: | Combine, Mirror, Positioning, Scaling, Turning |
| Save last embroidery position: | Yes |
| Sewing stitches in embroidery mode: | Yes |
| Stapling in the frame: | Yes |
| Thread removal function: | Yes |
| Tutorial (Embroidery): | Yes |
| Undo / Redo: | No |
| Word ART: | Yes |
Comfort features
| Adjustable presser foot pressure: | Yes |
|---|---|
| BSR foot #42 (BERNINA stitch regulator): | Yes |
| Dust cover: | Yes |
| Embroidery consultant: | No |
| Foot control: | Back-Kick |
| Sewing consultant: | Yes |
| Stitch Designer: | No |
| Stitch alteration during sewing: | Yes |
| Thread tension adjustable during sewing: | Yes |
Technical features
| Article type: | Sewing and embroidery machine, Sewing machine |
|---|---|
| Colour: | White / Silver |
| Dimensions L / W / H: | 522 / 214 / 358 mm |
| Display: | Colour touchscreen (4.3" / 10 cm) , Colour touchscreen (7" / 18 cm) |
| Functions: | Embroidery, Quilting, Sewing |
| Gripper system: | BG BERNINA Hook |
| Guarantee: | 2 years |
| Series: | BERNINA 7 Series |
| Weight: | 14 kg |
Scope of delivery

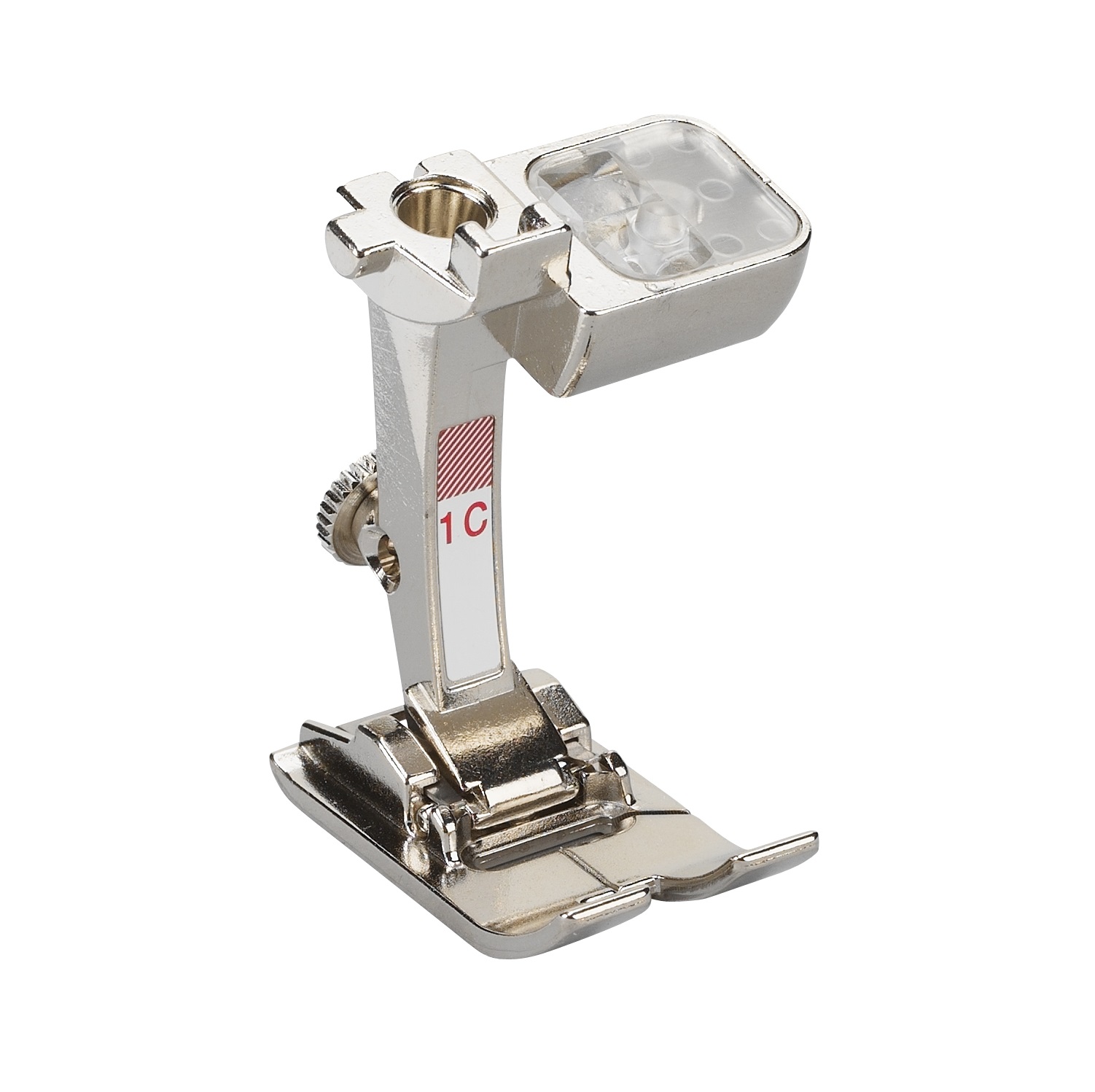

| #1C Reverse feed foot |
|---|

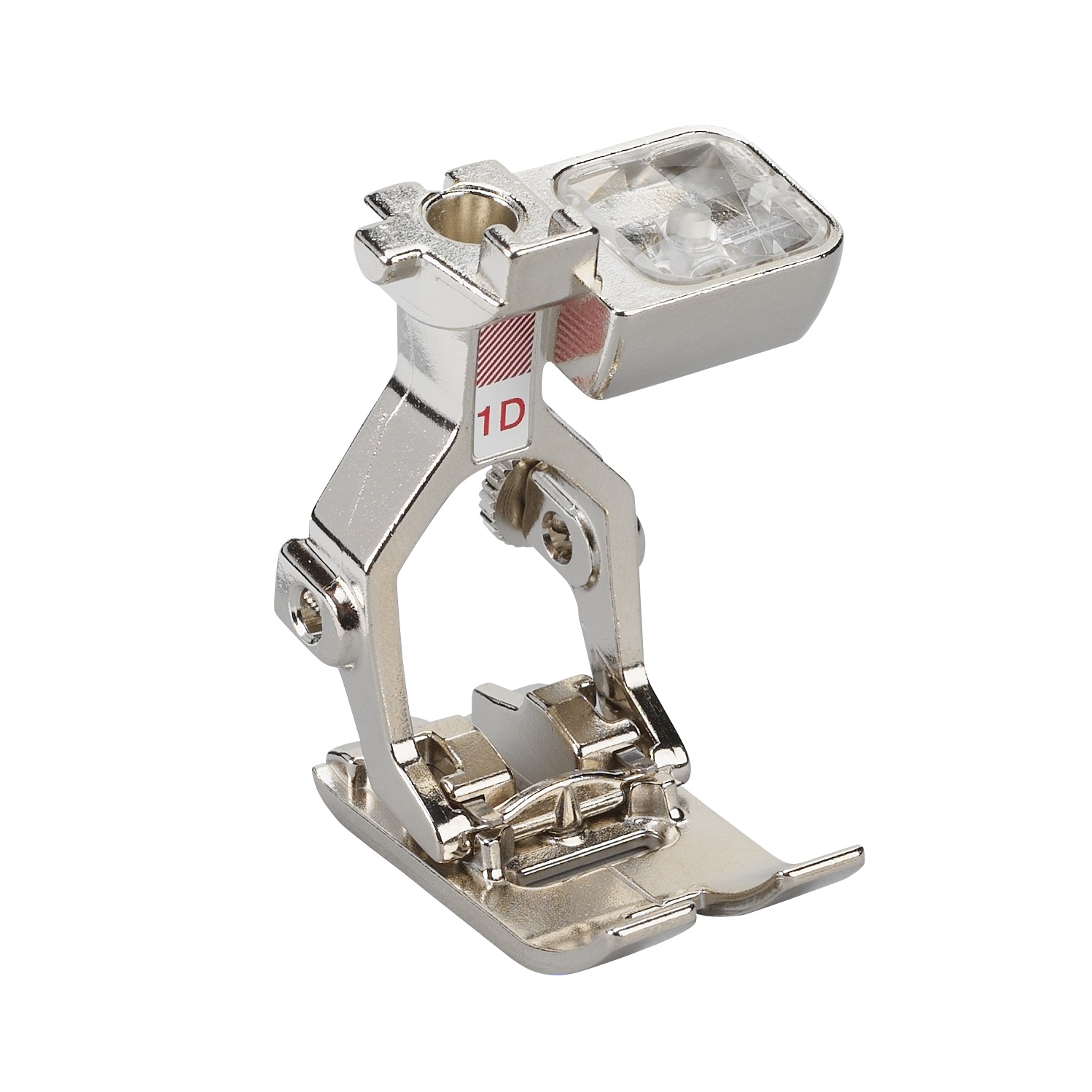

| #1D Reverse feed foot |

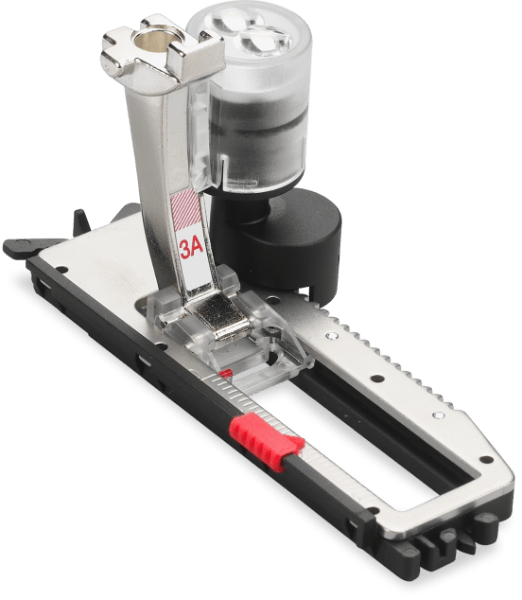

| #3A Automatic buttonhole foot |

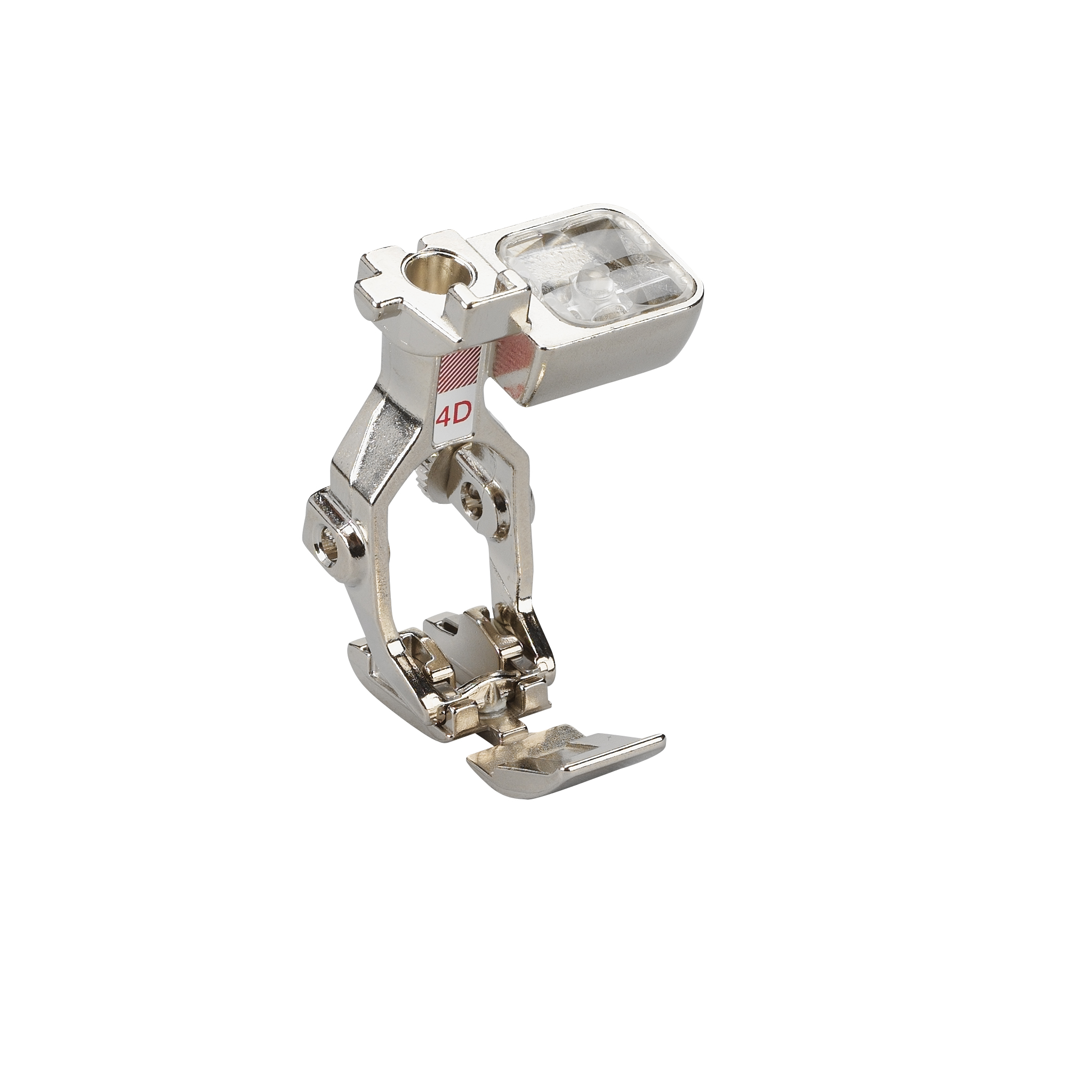

| #4D Zipper foot |

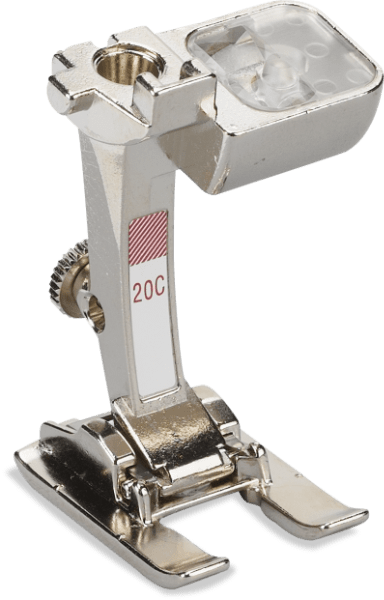

| #20C Open embroidery foot |

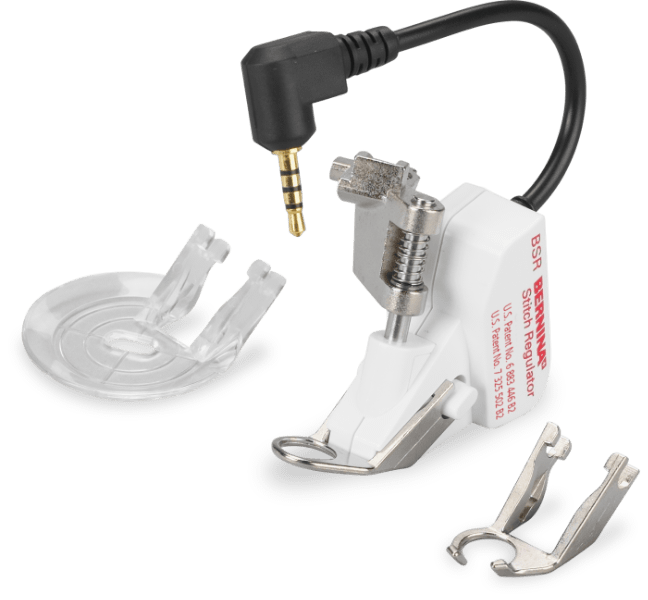

| #42 BERNINA Stitch Regulator BSR |

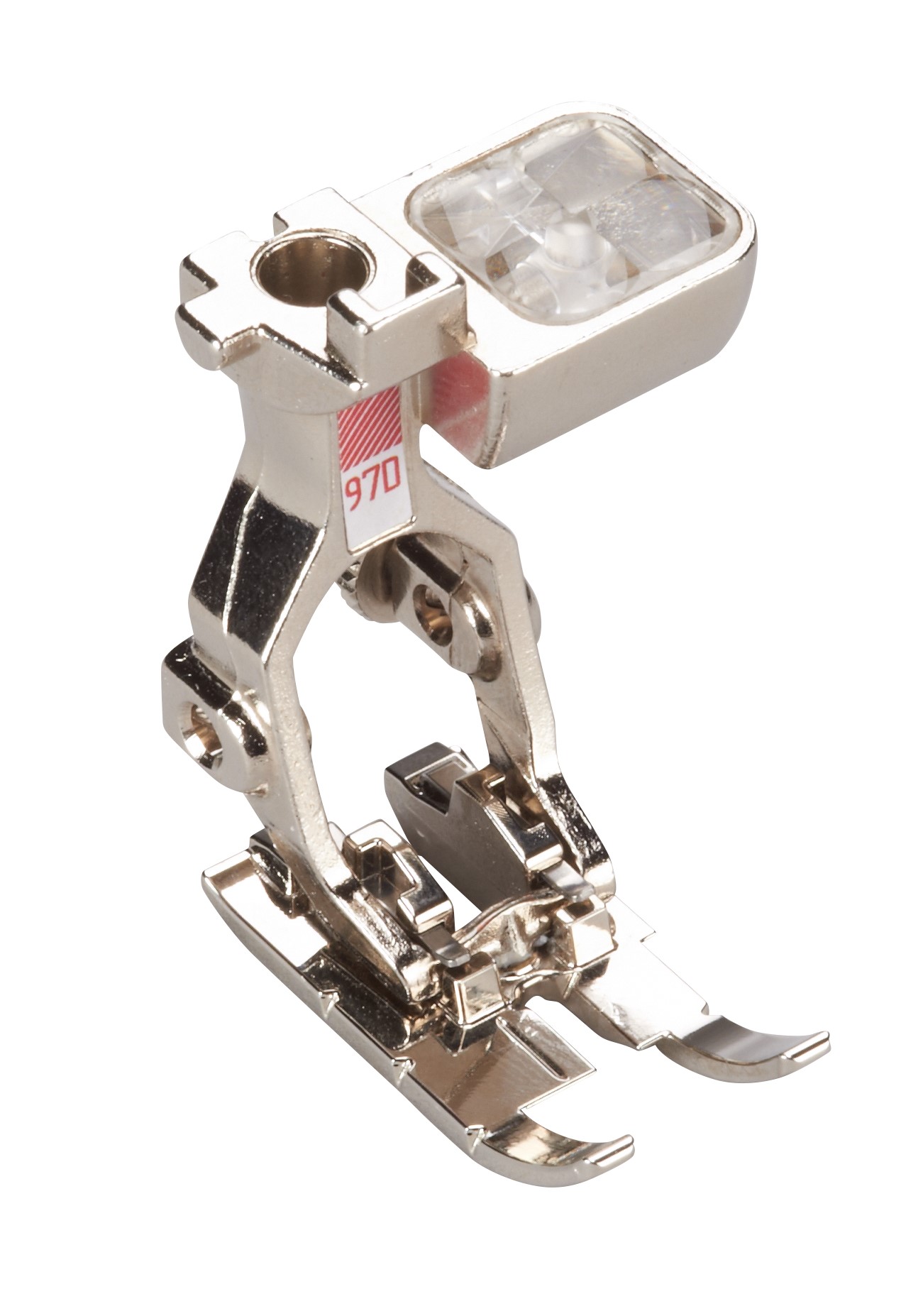

| #97D Patchwork foot |

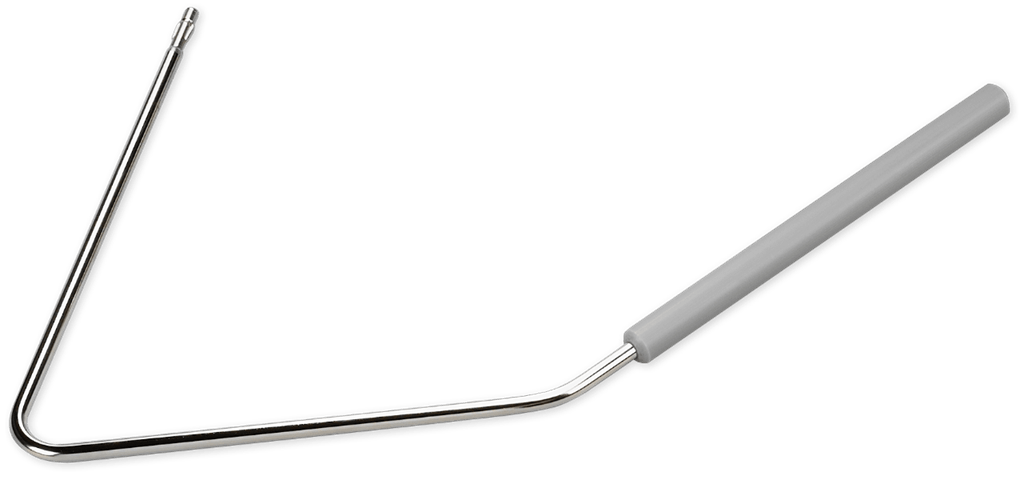

| Knee lever for free-motion system FHS |
| Push-on table |

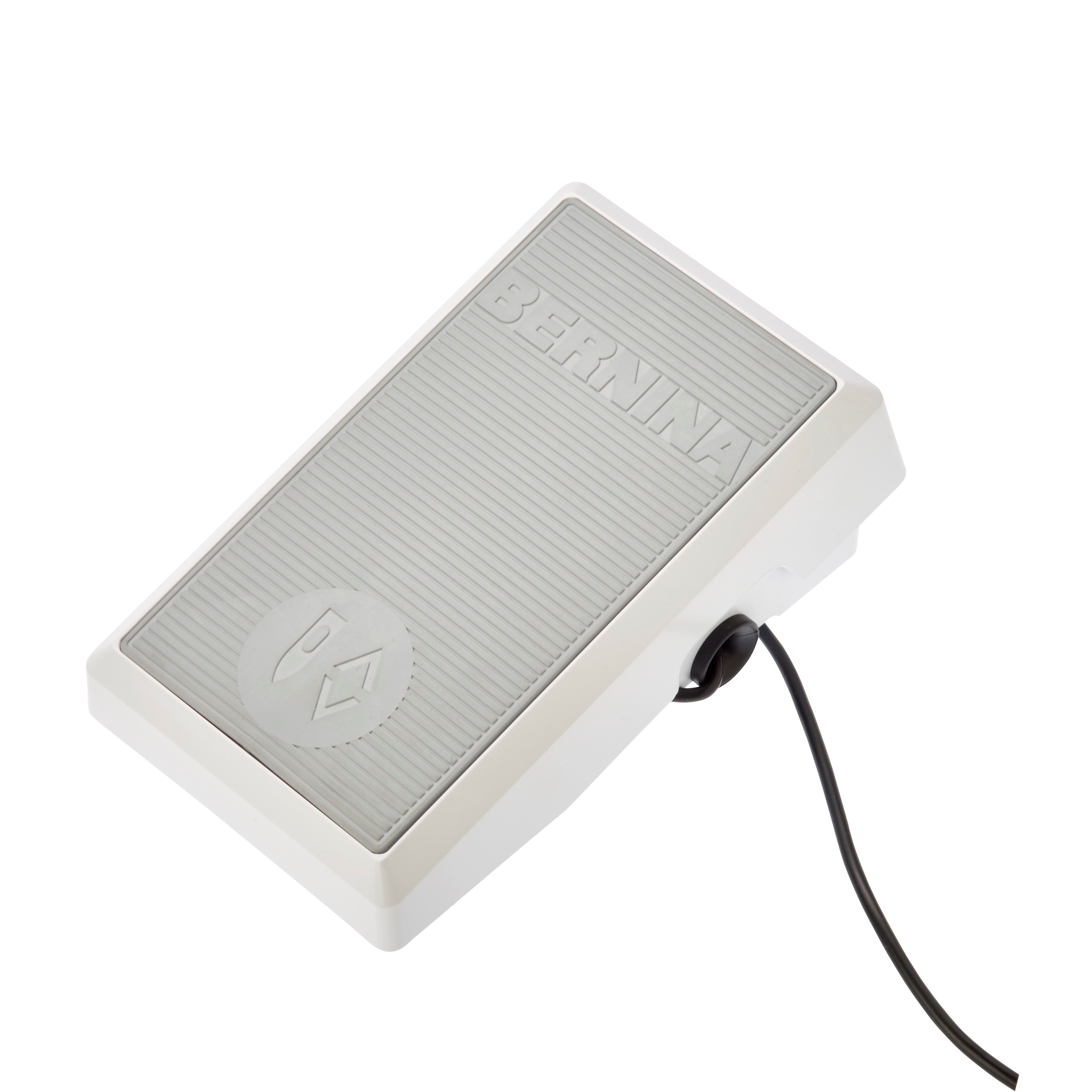

| BERNINA foot control with back-kick function |
| Power cord |

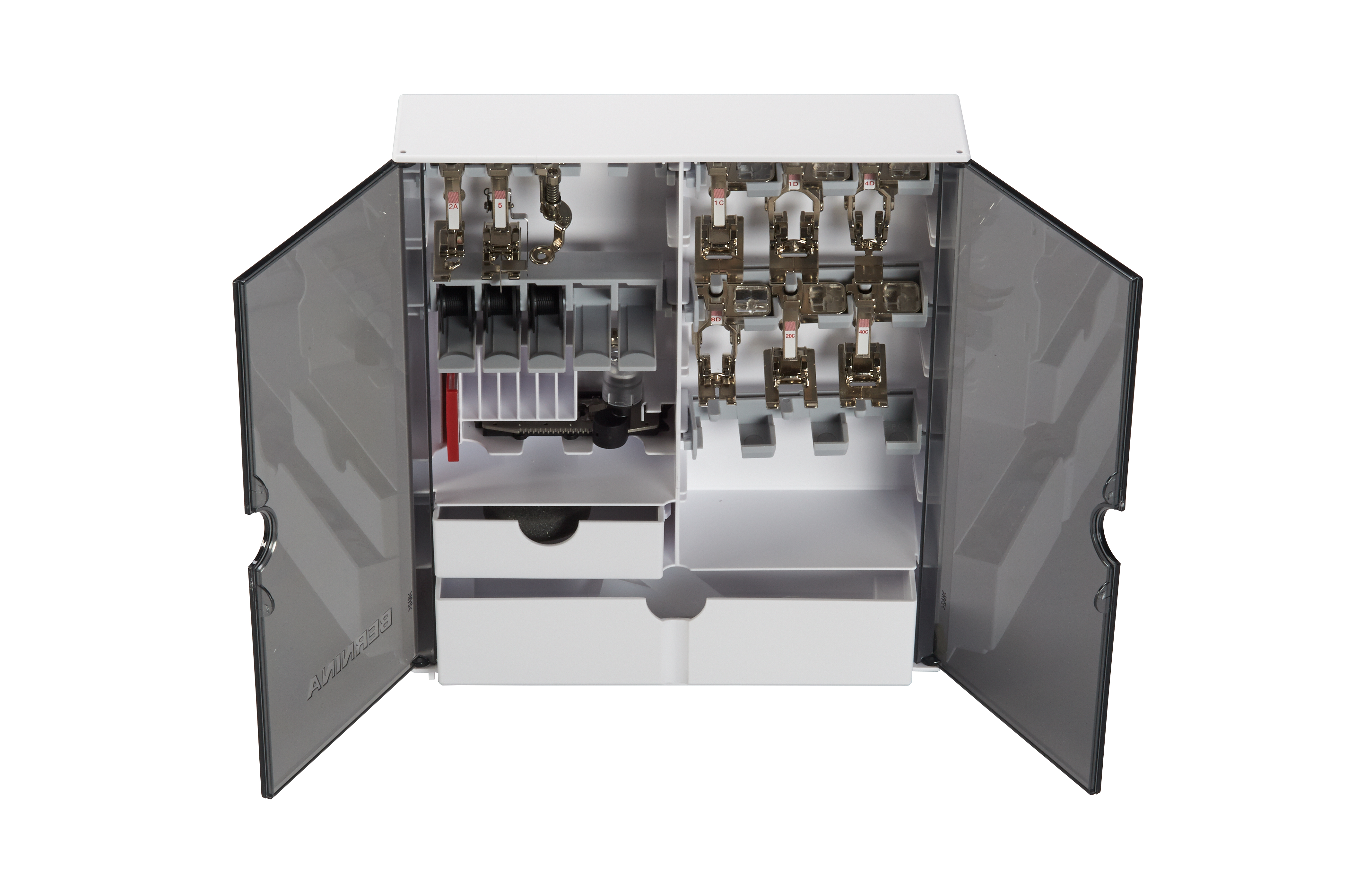

| Accessory box |
| Dust cover |
| 5 bobbin thread spools |

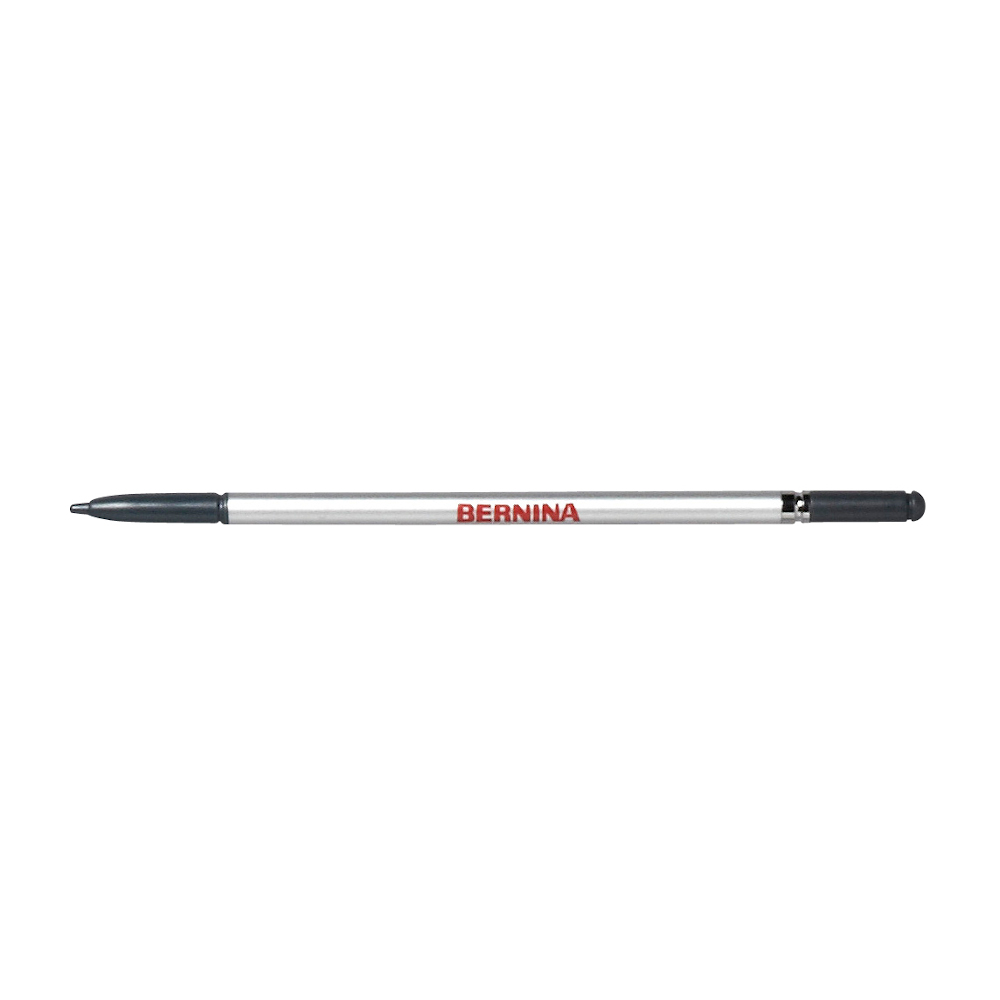

| Touchpen |

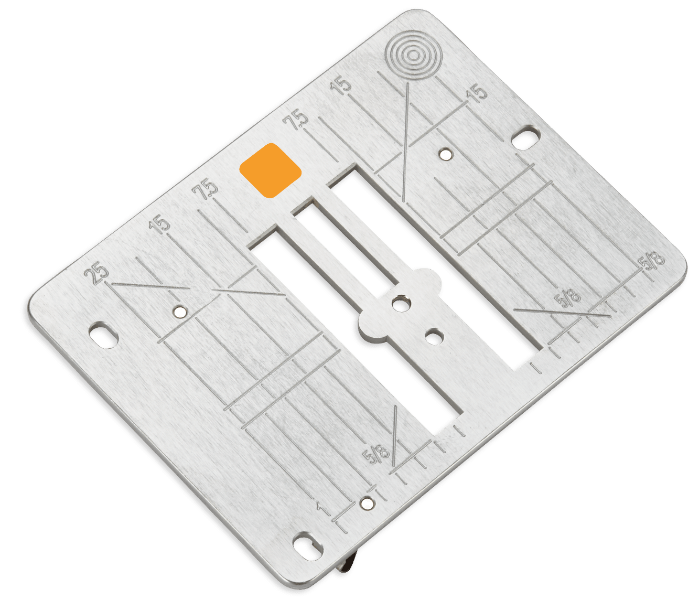

| Straight and CutWork stitch plate (orange) |

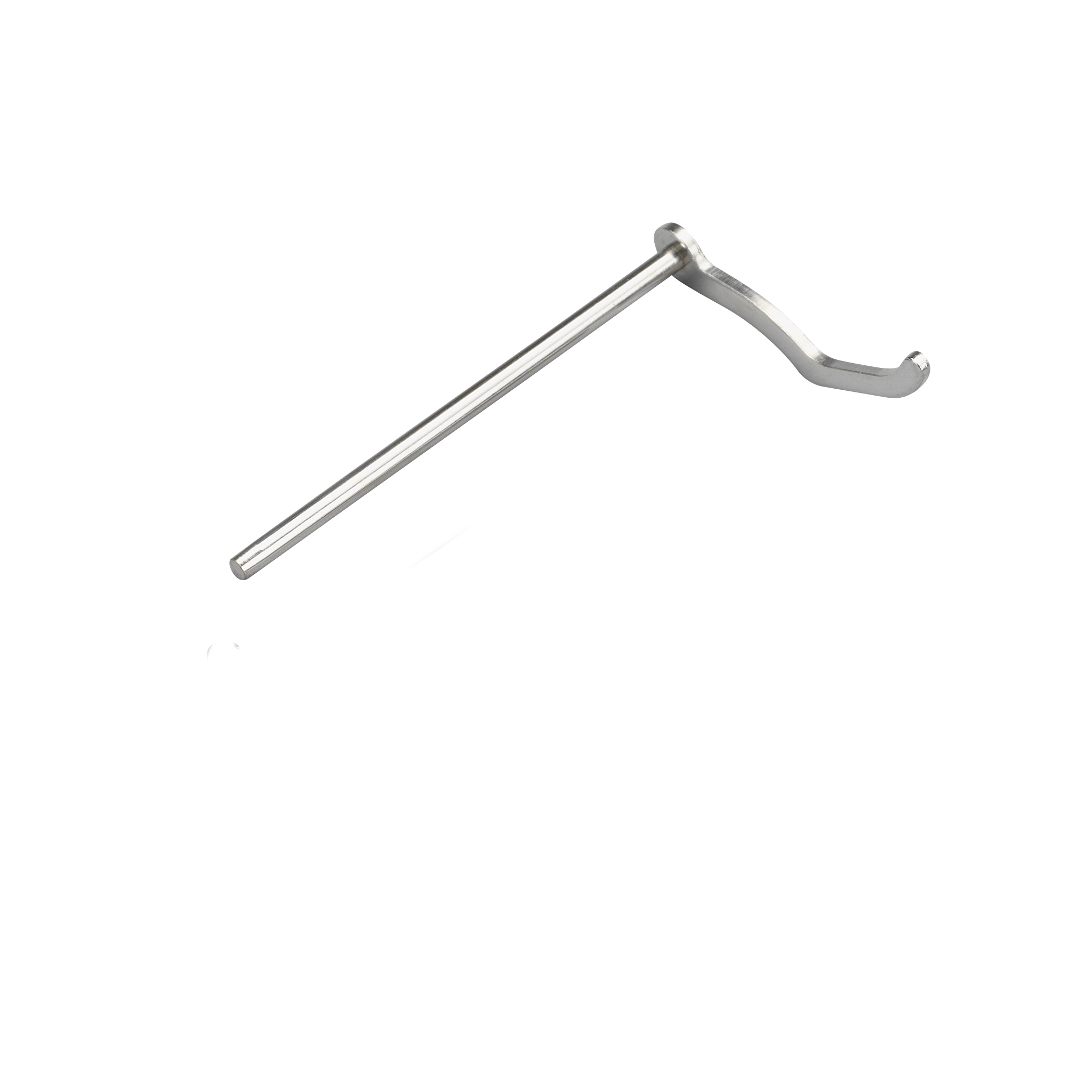

| Edge ruler right |

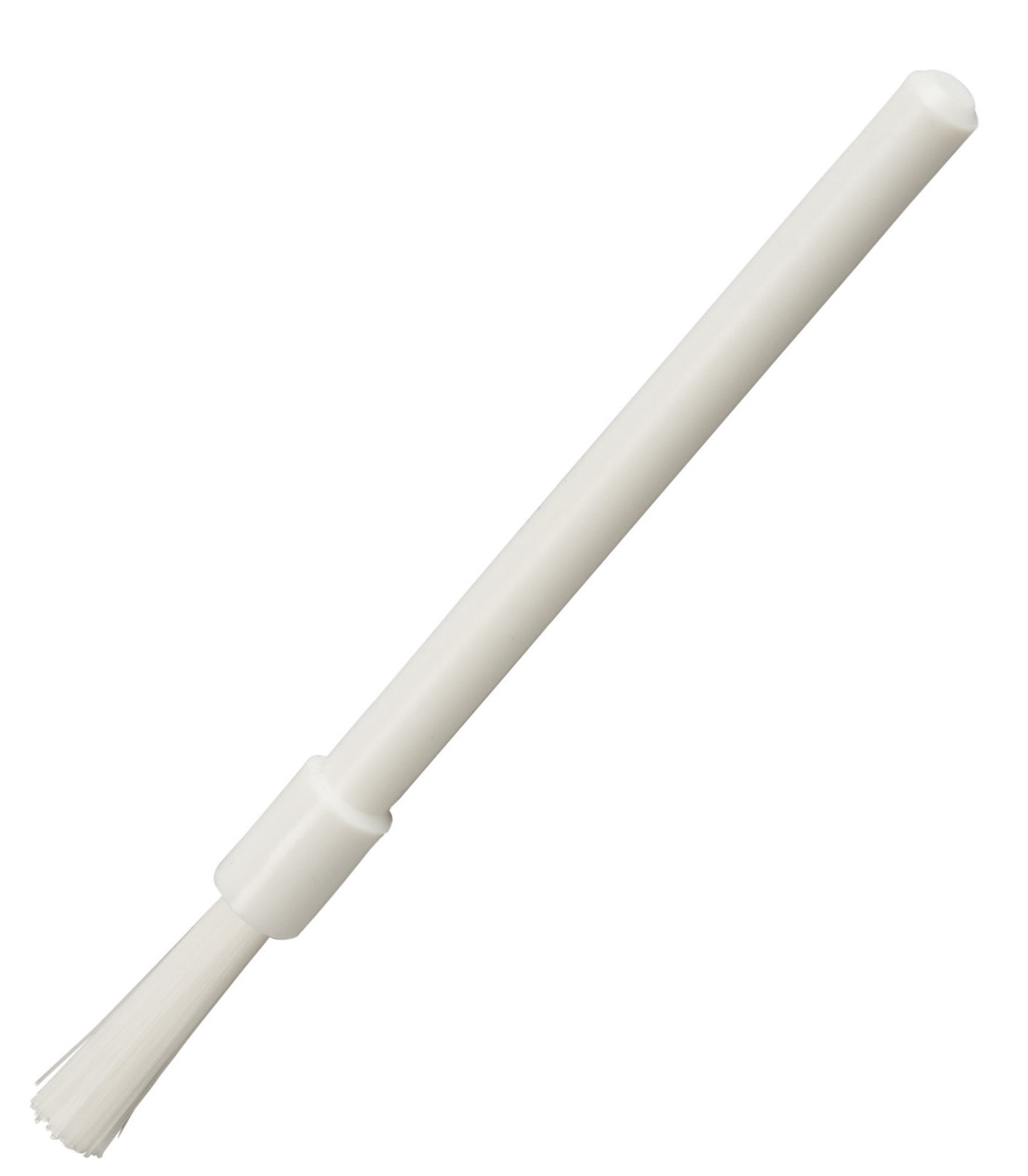

| Cleaning brush |

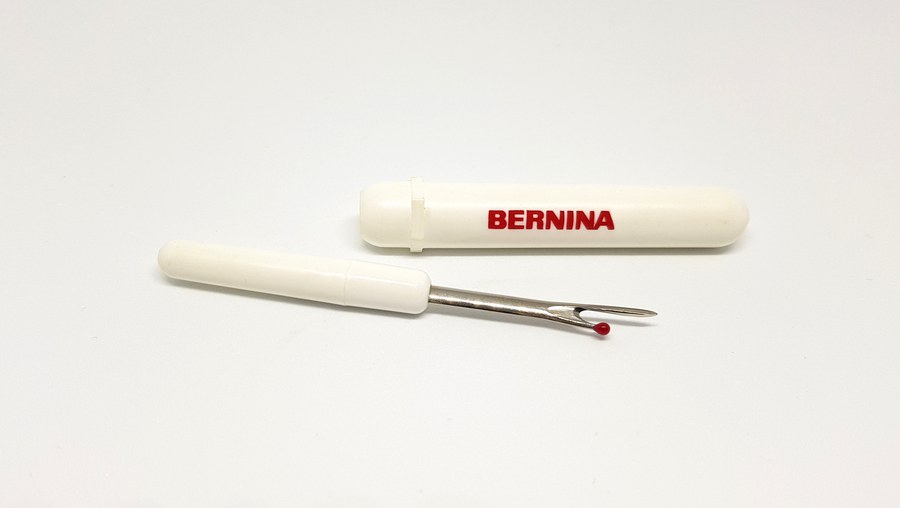

| Arrow separator / buttonhole opener |

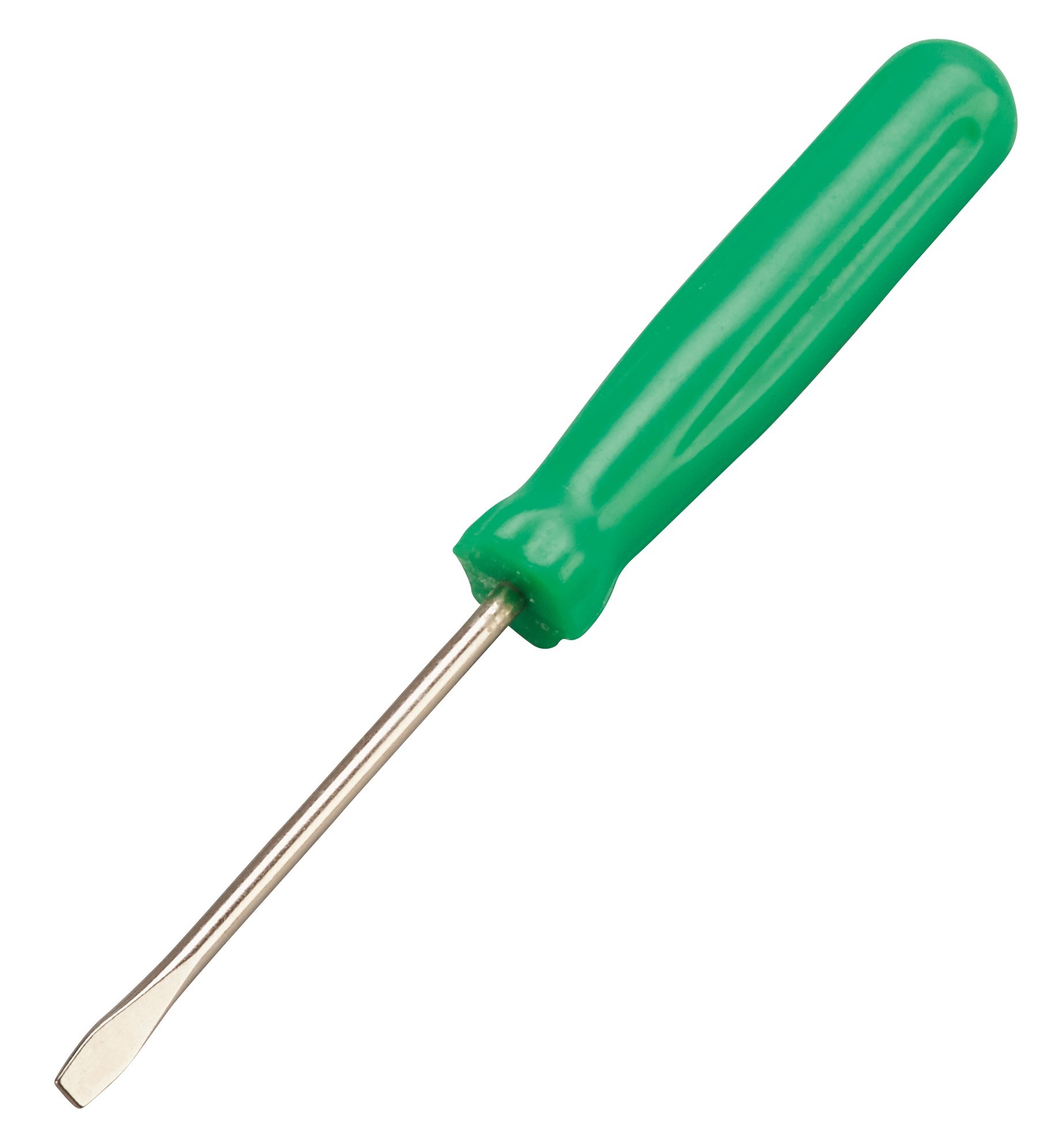

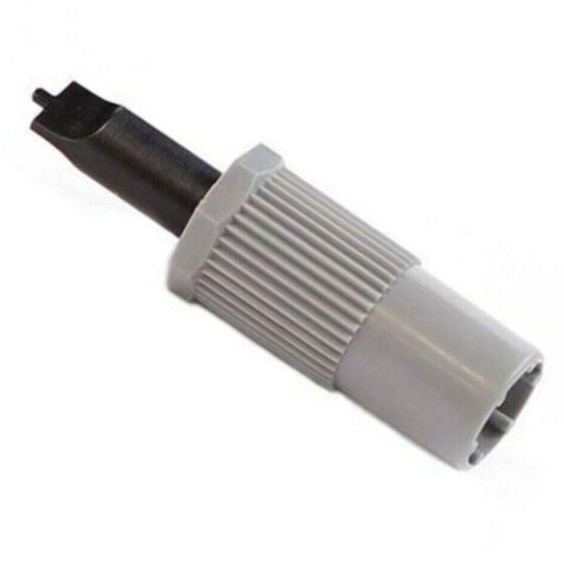

| Screwdriver |

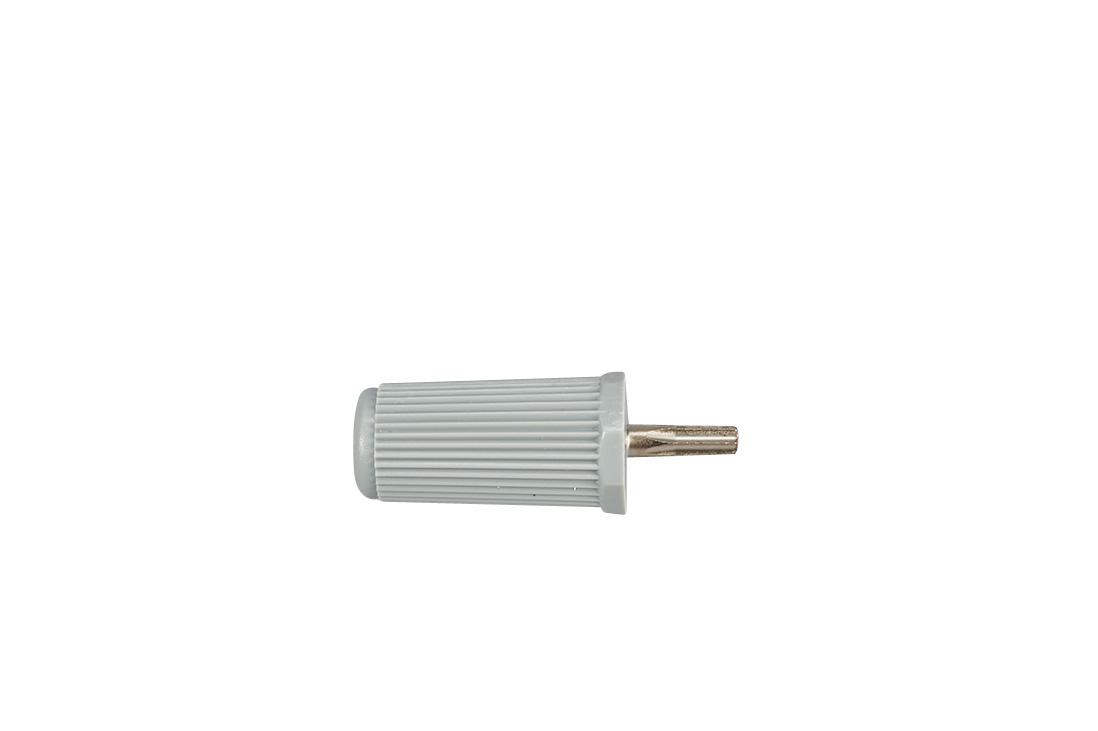

| Torx screwdriver grey |

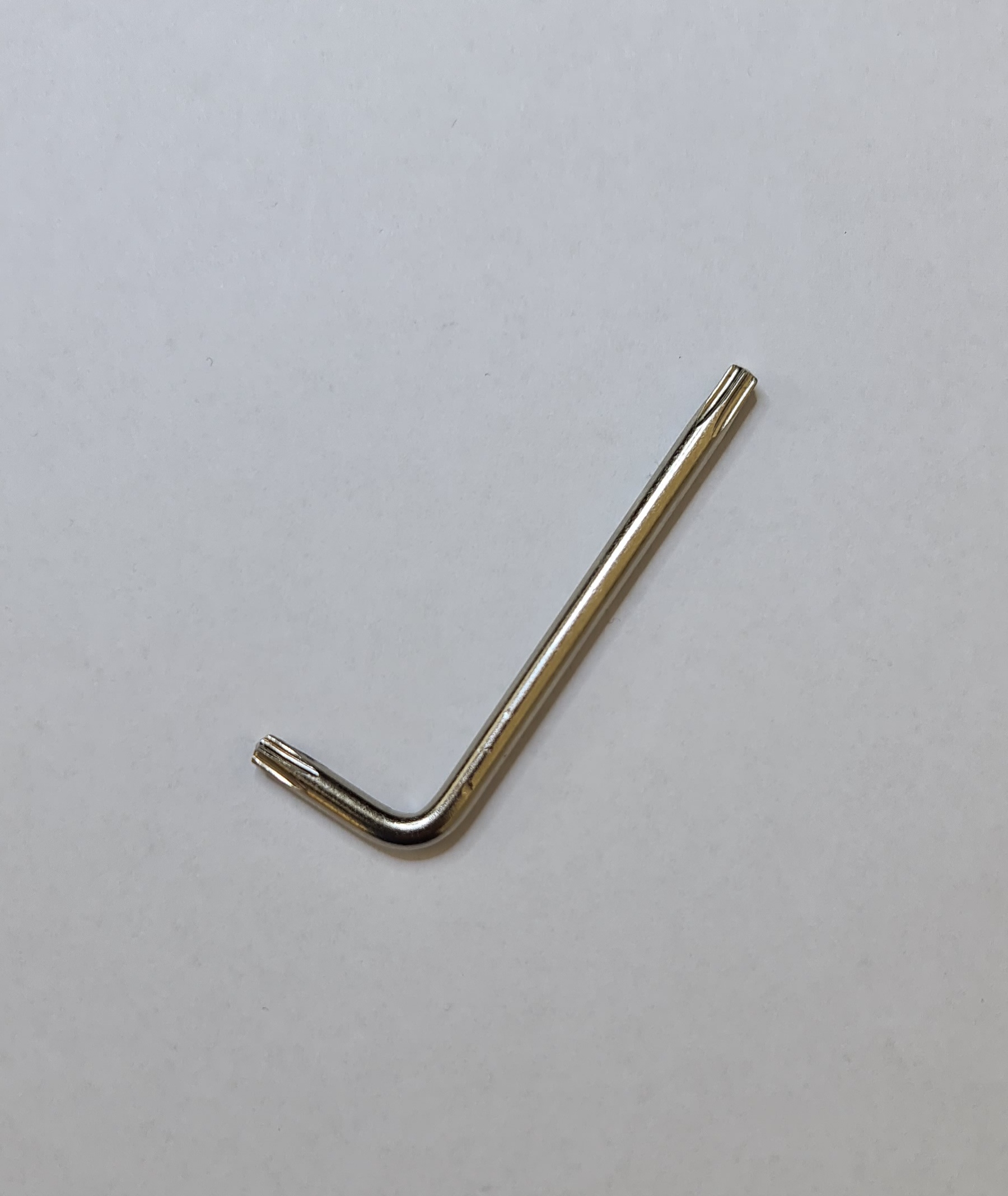

| Torx offset screwdriver |

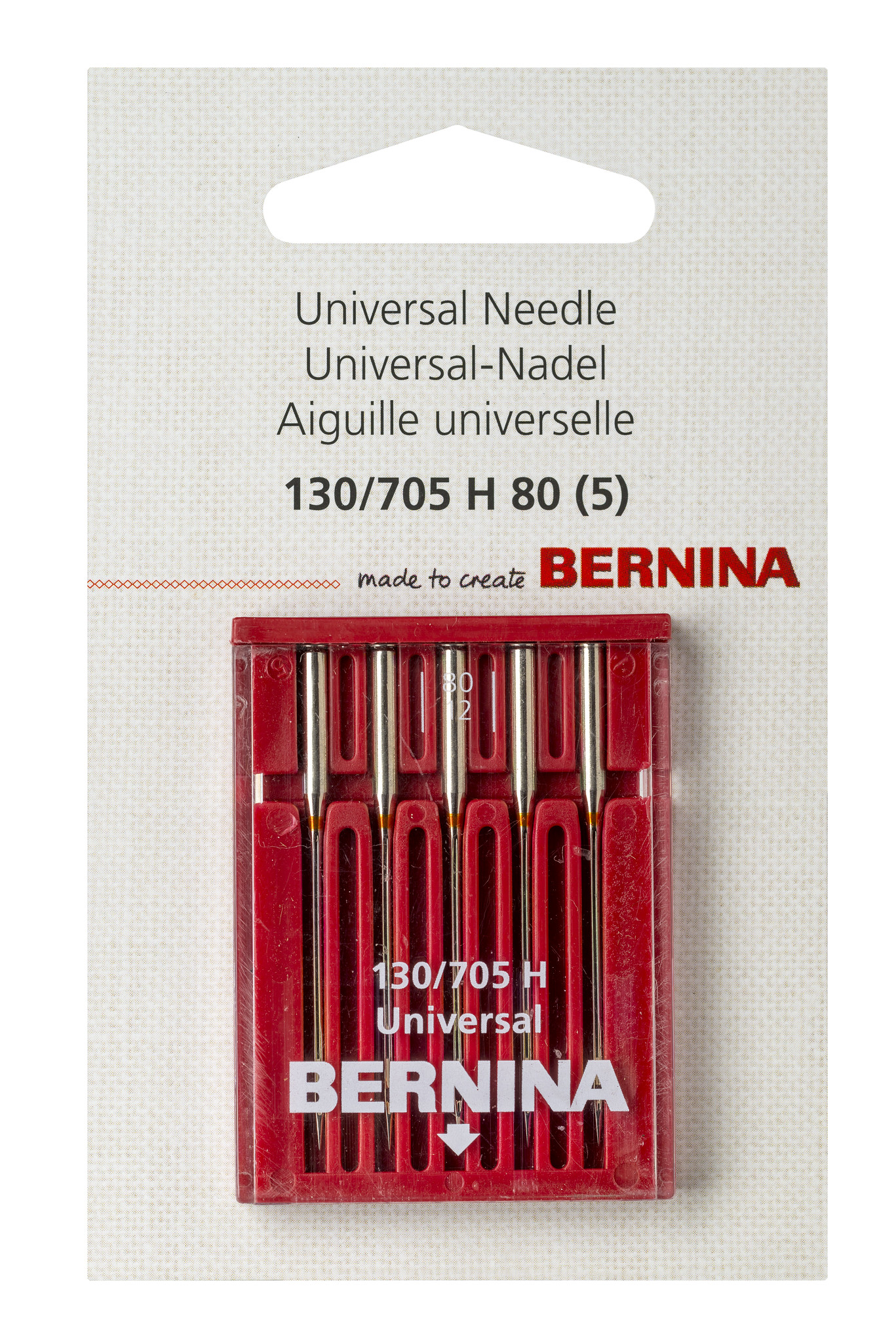

| Needle assortment |
| Height adjustment |
| Sewing machine oil |

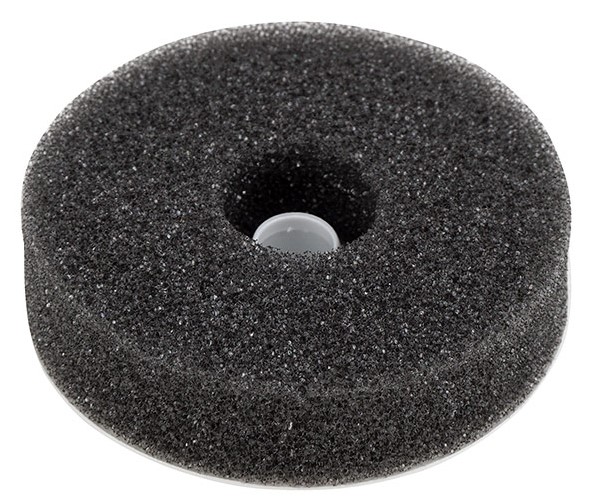

| 2 foam discs |

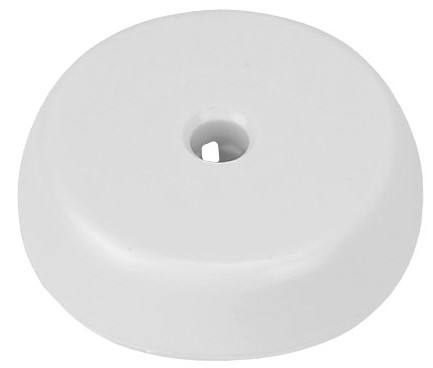

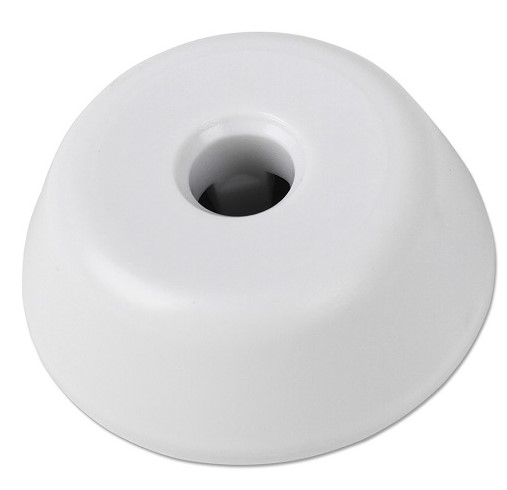

| 3 drain discs (small, medium, large) |
| Operating instructions |
